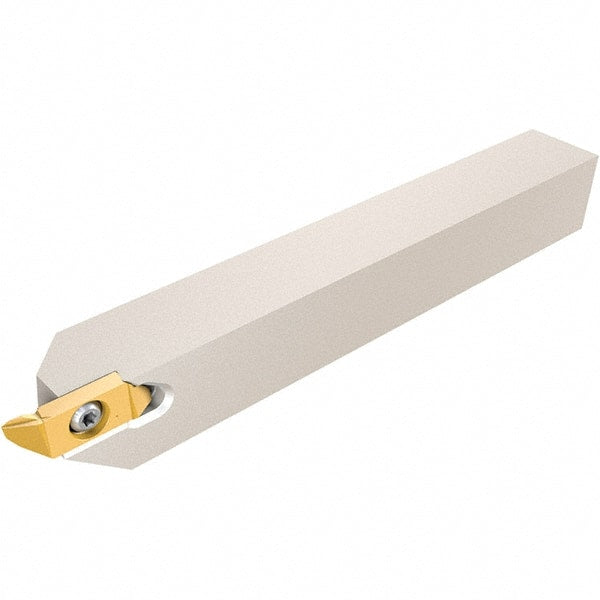

Iscar - SCH, External, Left Hand, 0.315" Max Depth of Cut, 0.02 to 0.098" Groove Width, Indexable Grooving Tool Holder - SCIL 22, SCIR 22 Insert Compatibility, 3/8" Shank Height, 3/8" Shank Width, 4.921" OAL
Item #: 68701499
Brand: Iscar
Model #: 2802078
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Minimum Groove Width (Decimal Inch) | 0.0200 |
| Maximum Groove Width (Decimal Inch) | 0.0980 |
| Overall Length (Decimal Inch) | 4.9210 |
| Toolholder Style | SCH |
| Insert Compatibility | SCIL 22; SCIR 22 |
| Shank Height (Decimal Inch) | 0.3750 |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Series | Swisscut |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Screw |
| Complete Insert Compatibility | SCIL 22-050L12-00; SCIL 22-050N-00; SCIL 22-050R12-00; SCIL 22-080NP00; SCIL 22-100L16-00; SCIL 22-100N-00; SCIL 22-100NP08; SCIL 22-100R16-00; SCIL 22-150L16-00; SCIL 22-150N-00; SCIL 22-150NP05; SCIL 22-150R16-00; SCIL 22-200L16-00; SCIL 22-200N-10; SCI |
