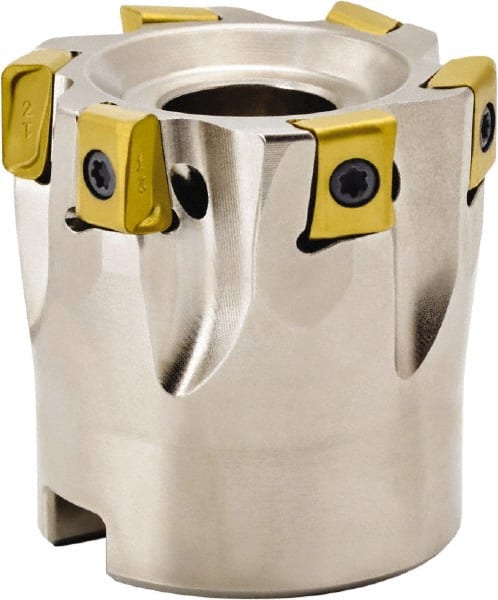

Seco - 5 Inserts, 2" Cut Diam, 0.315" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 1.57" High, LOEX 0804 Insert Compatibility, Series Square T4-08
Item #: 68739523
Brand: Seco
Model #: 85511
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | LOEX 0804 |
| Series | Square T4-08 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | R220.94 |
| Number of Flutes | 5 |
| Maximum RPM | 14800 |
| Pitch | Normal |
| Complete Insert Compatibility | LOEX 080404TR-M08; LOEX 080404TR-MD08; LOEX 080408TR-M08; LOEX 080408TR-MD08; LOEX 080412TR-M08; LOEX 080412TR-MD08; LOEX 080416TR-M08; LOEX 080416TR-MD08 |
