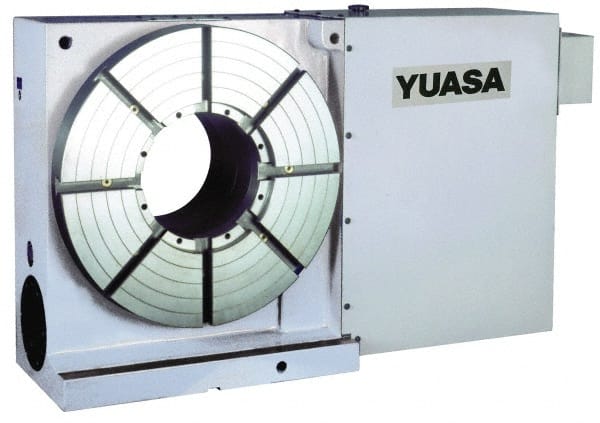

Yuasa - 1 Spindle, 25 Max RPM, 15.75" Table Diam, 2 hp, Horizontal & Vertical CNC Rotary Indexing Table - 500 kg (1100 Lb) Max Horiz Load, 281.94mm Centerline Height
Item #: 68785005
Brand: Yuasa
Model #: DMNC-400
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Indexer Type | Rotary Table |
| Number of Spindles | 1 |
| Maximum RPM | 25 |
| Table Diameter (Decimal Inch) | 15.7500 |
| Setting Position | Horizontal; Vertical |
| Maximum Horizontal Load Capacity (Lb.) | 1100 |
| Maximum Horizontal Load Capacity (kg) | 500 |
| Maximum Vertical Load Capacity (Lb.) | 770 |
| Maximum Vertical Load Capacity (kg) | 350 |
| Sub Table Outside Diameter (mm) | 400.05 |
| Sub Table Outside Diameter (Decimal Inch) | 15.7500 |
| Centerline Height (mm) | 281.94 |
| Centerline Height (Decimal Inch) | 11.1000 |
| Through Hole Size (mm) | 169.93 |
| Through Hole Size (Decimal Inch) | 6.6900 |
| Table Torque (Ft/Lb) | 789.00 |
| Table Torque (kg-m) | 109.00 |
| Hydraulic Brake Torque (Ft/Lb) | 789 |
| Hydraulic Brake Torque (kg-m) | 109 |
| Resolution (Decimal Inch) | 0.0003 |
| Positioning Accuracy (sec.) | 7.50 |
| Repeatability (sec.) | 2.00 |
| Bore Inside Diameter (mm) | 41.91 |
| Bore Inside Diameter (Decimal Inch) | 1.6500 |
| Threaded Inside Diameter | M36x3.0 |
| Gear Ratio | 180:1 |
| Spindle Runout (mm) | 0.15 |
| Spindle Runout (Decimal Inch) | 0.006000 |
| Number of T-Slots | 8 |
| Motor Type | AC Servo |
| Voltage | 105 to 240 |
| Horsepower (HP) | 2.00 |
| Includes | Locating Keys; Operators' Manual; Power Supply; Remote Cable; T-Slotted Face Plate; UDNC-M1 Controller; Warranty Card |
