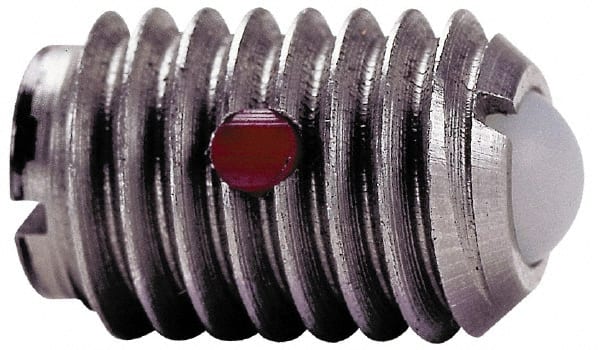

TE-CO - 5/16-18, 0.156" Ball Diam, 37/64" Body Length, 0.04" Max Ball Reach, Threaded Ball Plunger
Item #: 84904275
Brand: TE-CO
Model #: 53841
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Nylon balls are ideal for applications where products or components are made mostly or entirely of plastic. They are lightweight, highly durable and non-marring.
| Product Specifications | |
|---|---|
| Thread Size | 5/16-18 |
| Body Length (Inch) | 37/64 |
| Body Material | Stainless Steel |
| Ball Material | Nylon |
| Initial End Force (Lb.) | 4.00 |
| Final End Force (Lb.) | 9.00 |
| Locking Element | Yes |
| Ball Diameter (Decimal Inch) | 0.1560 |
| Maximum Ball Reach (Decimal Inch) | 0.0400 |
