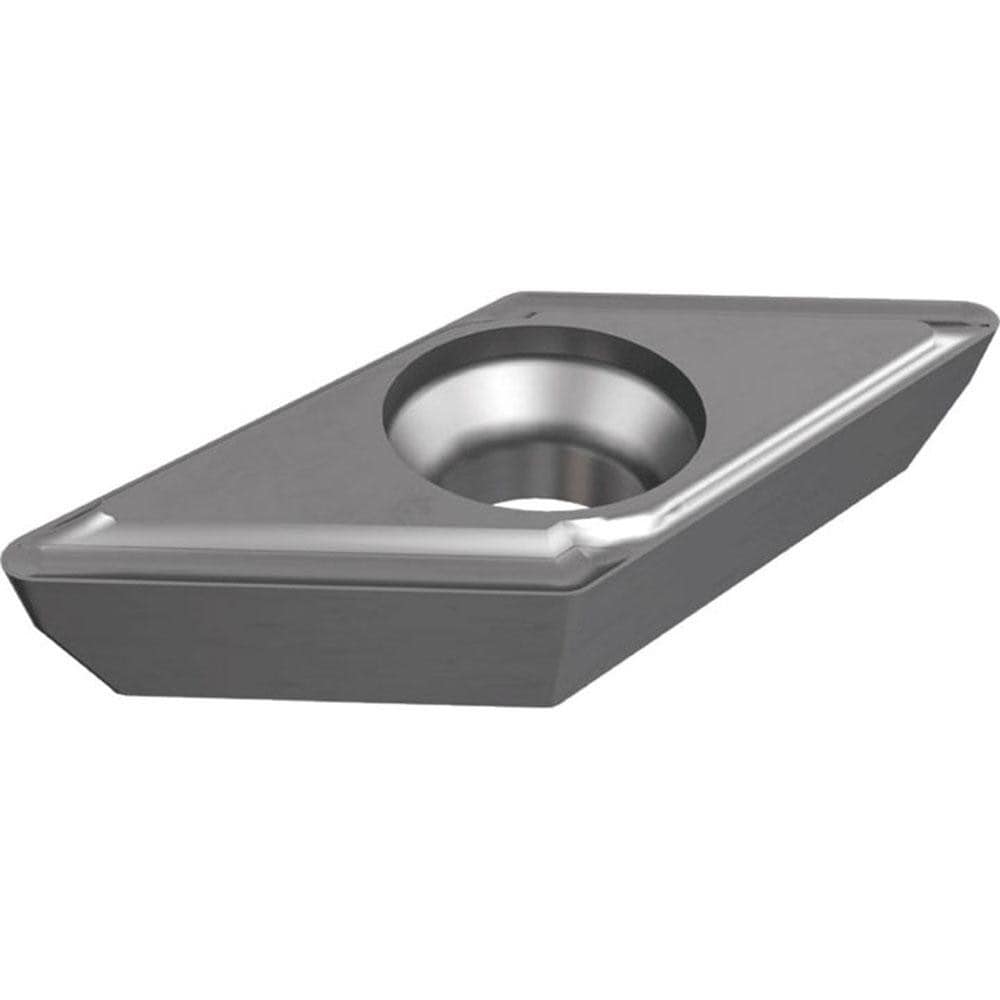

Drill Chamfer Inserts; Insert Style: AOMT; Insert Size Code: 030204; Insert Material: Carbide; Insert Thickness: 0.0630 in; Insert Shape: Diamond; Manufacturer Grade: GH730; Inscribed Circle: 3.00 mm; Chamfer Angle: 30.000
Item #: 73314007
Brand: Tungaloy
Model #: 5507145
Product Specifications
| Insert Style | AOMT |
| Insert Size Code | 030204 |
| Insert Material | Carbide |
| Insert Thickness | 0.0630 in |
| Insert Shape | Diamond |
| Manufacturer Grade | GH730 |
| Inscribed Circle | 3.00 mm |
| Chamfer Angle | 30.000 |
| Chipbreaker | DT |
| Series | AOMT |
| Coated | Coated |
| Coating | TiCNO |
| Coating Process | PVD |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| UNSPSC Code | 23242105 |
| Insert Style | AOMT |
| Insert Size Code | 030204 |
| Insert Material | Carbide |
| Insert Thickness | 0.0630 in |
| Insert Shape | Diamond |
| Manufacturer Grade | GH730 |
| Inscribed Circle | 3.00 mm |
| Chamfer Angle | 30.000 |
| Chipbreaker | DT |
| Series | AOMT |
| Coated | Coated |
| Coating | TiCNO |
| Coating Process | PVD |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| UNSPSC Code | 23242105 |
| MSC Part # | 73314007 |
| Mfr Part # | 5507145 |
| Country of Origin Country of Origin is subject to change | Israel |
