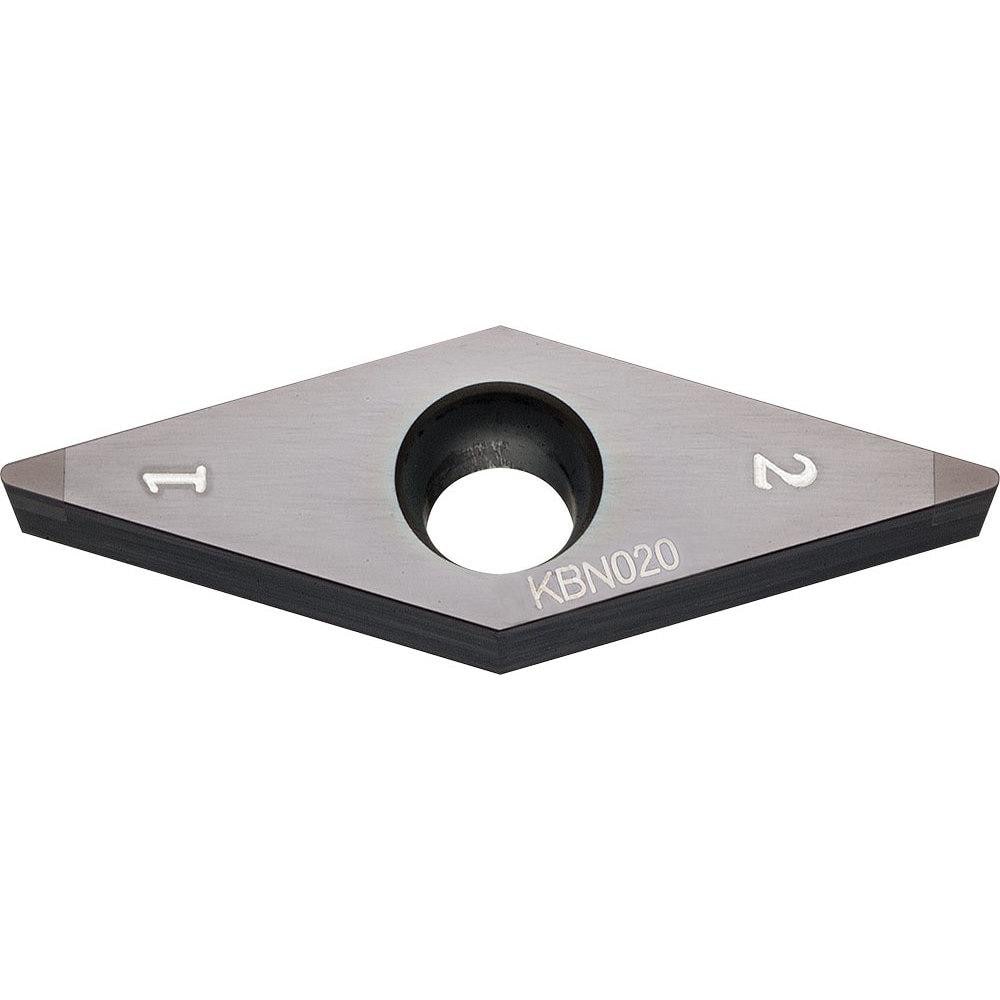

Turning Insert: VBGW3305T00315ME, Cubic Boron Nitride (CBN)
Item #: 68903210
Brand: Kyocera
Model #: TFD00044
Product Specifications
| ANSI Insert Code | VBGW |
| ISO Insert Code | VBGW |
| Relief Angle | 5.000 |
| Insert Style | VBGW |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35.00 |
| Manufacturer Grade | KBN010 |
| Coating/Finish | MEGACOAT TOUGH |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Diamond |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | B |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Iso Code | VBGW160402T00815ME |
| Standards | KBN010 |
| Manufacturers Catalog Number | VBGW3305T00315MEKBN010 |
| Chip Breaker | None |
| Cutting Edge Style | Honed |
| Industry Standard Number | VBGW160402T00815ME |
| Multi-Use Tool | Yes |
| Tip Length (Decimal Inch) | 0.0945 |
| Tip Length (mm) | 2.40 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 3305 |
| ANSI Insert Code | VBGW |
| ISO Insert Code | VBGW |
| Relief Angle | 5.000 |
| Insert Style | VBGW |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35.00 |
| Manufacturer Grade | KBN010 |
| Coating/Finish | MEGACOAT TOUGH |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Diamond |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | B |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Iso Code | VBGW160402T00815ME |
| Standards | KBN010 |
| Manufacturers Catalog Number | VBGW3305T00315MEKBN010 |
| Chip Breaker | None |
| Cutting Edge Style | Honed |
| Industry Standard Number | VBGW160402T00815ME |
| Multi-Use Tool | Yes |
| Tip Length (Decimal Inch) | 0.0945 |
| Tip Length (mm) | 2.40 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 3305 |
| MSC Part # | 68903210 |
| Mfr Part # | TFD00044 |
| Country of Origin Country of Origin is subject to change | Ireland |
