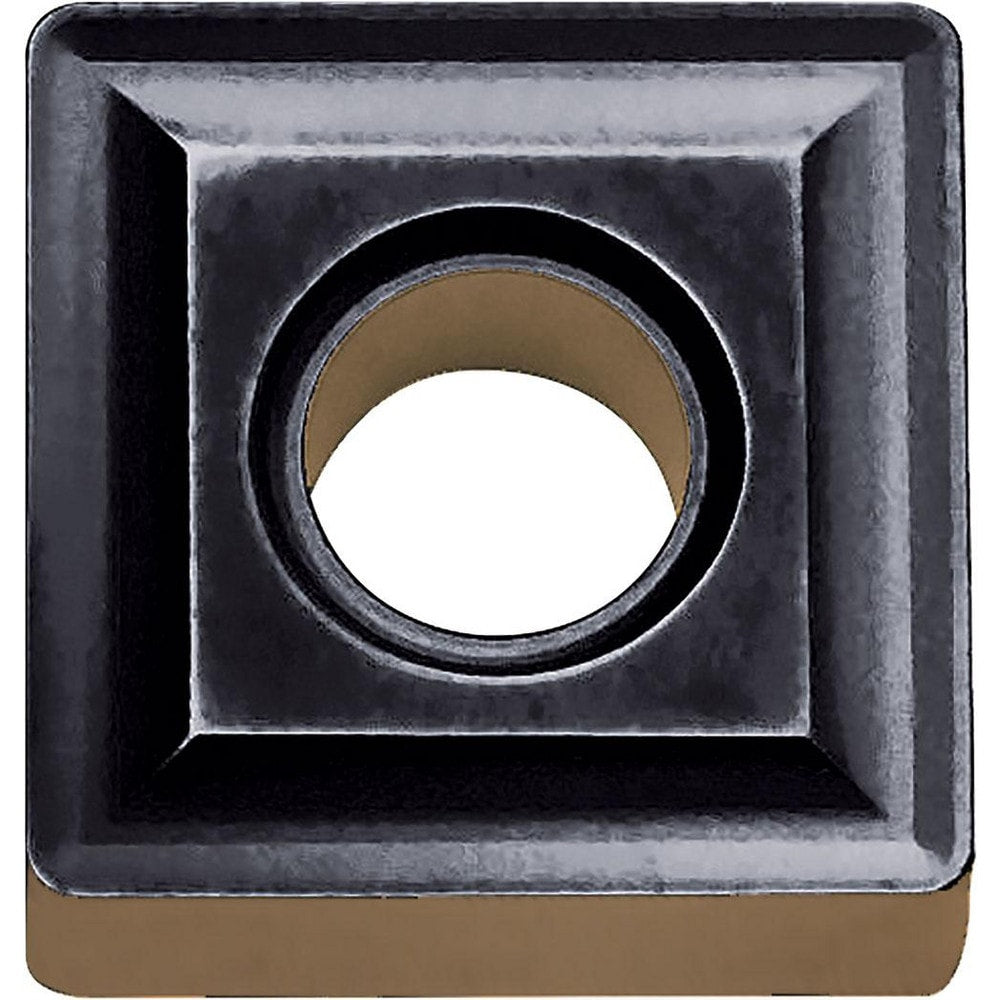

Turning Insert: SNMG321 CA115P, Carbide
Item #: 71224661
Brand: Kyocera
Model #: TML00187
Product Specifications
| ANSI Insert Code | SNMG321 |
| ISO Insert Code | SNMG090304 |
| Relief Angle | 0 |
| Insert Style | SNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Included Angle | 90 |
| Manufacturer Grade | CA115P |
| Coating/Finish | TiCN/Al2O3/TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Chip Breaker Operation | No Chip Breaker |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | None |
| Iso Code | SNMG090304 |
| Manufacturers Catalog Number | SNMG321CA115P |
| Chip Breaker | No Chip Breaker |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
| ANSI Size Code | 321 |
| ISO Size Code | 090304 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 321 |
| ANSI Insert Code | SNMG321 |
| ISO Insert Code | SNMG090304 |
| Relief Angle | 0 |
| Insert Style | SNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Included Angle | 90 |
| Manufacturer Grade | CA115P |
| Coating/Finish | TiCN/Al2O3/TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Chip Breaker Operation | No Chip Breaker |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | None |
| Iso Code | SNMG090304 |
| Manufacturers Catalog Number | SNMG321CA115P |
| Chip Breaker | No Chip Breaker |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
| ANSI Size Code | 321 |
| ISO Size Code | 090304 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 321 |
| MSC Part # | 71224661 |
| Mfr Part # | TML00187 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
