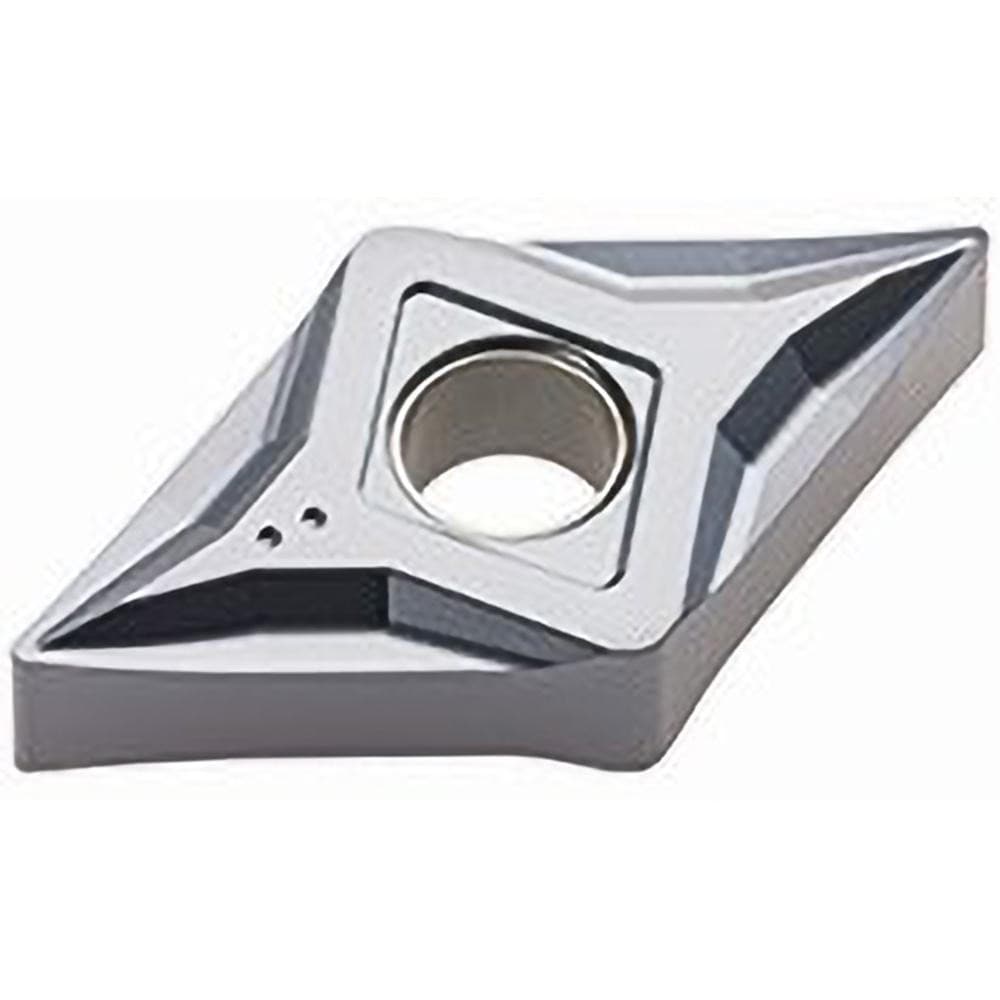

Turning Insert: DNGP150604ENEXK ACM20K, Carbide
Item #: 75554303
Brand: Accupro
Model #: 75554303
Product Specifications
| ANSI Insert Code | DNGP441 |
| ISO Insert Code | DNGP150604 |
| Relief Angle | 0 |
| Insert Style | DNGP |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | ACM20K |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2043 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Pin; Screw; Clamp; Lever Lock |
| Clearance Code | N |
| Tolerance Code | G |
| Primary Workpiece Material Code | K; M |
| Standards | ANSI Code: DNGP441 |
| Chip Breaker | EXK+ |
| ANSI Size Code | 441 |
| ISO Size Code | 150604 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 15 |
| Country of Origin | VARIOUS |
