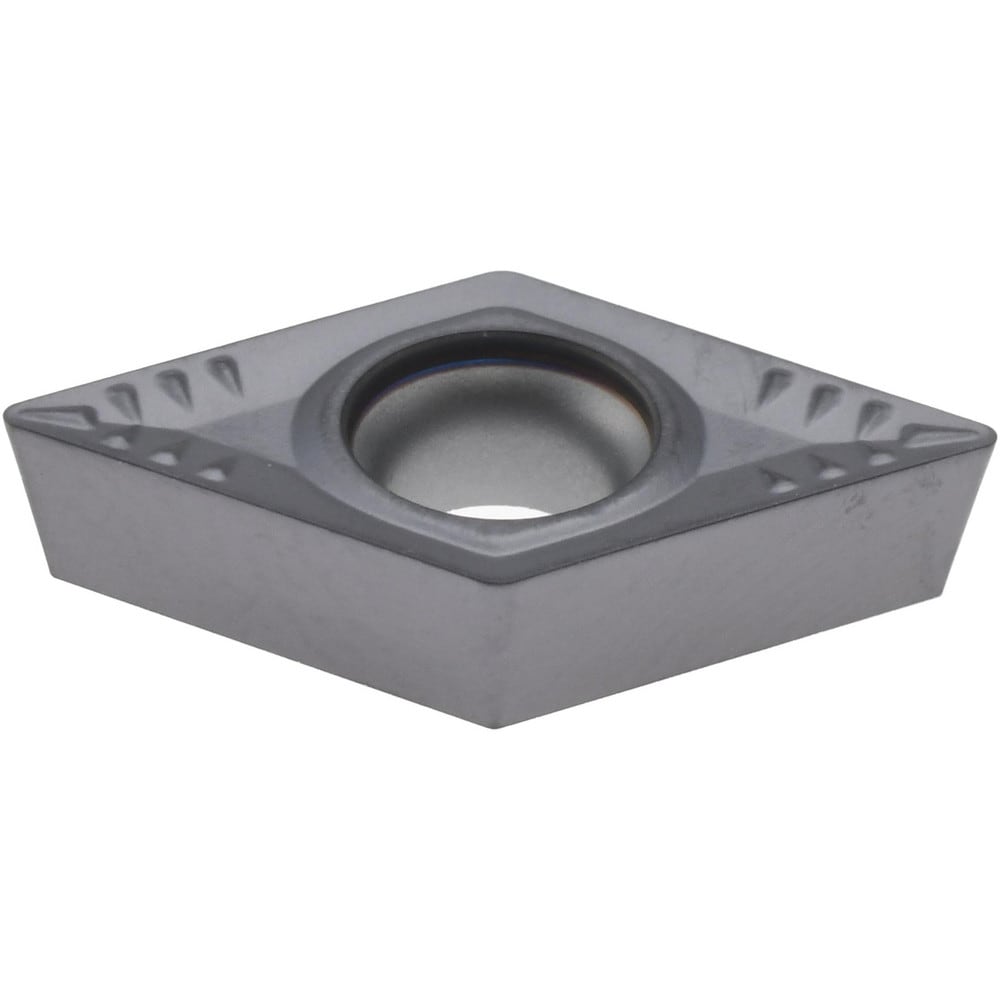

Turning Insert: DCMT070208WM+ ACM25P, Carbide
Item #: 75561753
Brand: Accupro
Model #: 75561753
Product Specifications
| ANSI Insert Code | DCMT |
| ISO Insert Code | DCMT070208 |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55 |
| Manufacturer Grade | ACM25P |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; S; M |
| Standards | ANSI Code: DCMT21.52 |
| Chip Breaker | WM+ |
| ISO Size Code | 070208 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 07 |
| Country of Origin | VARIOUS |
