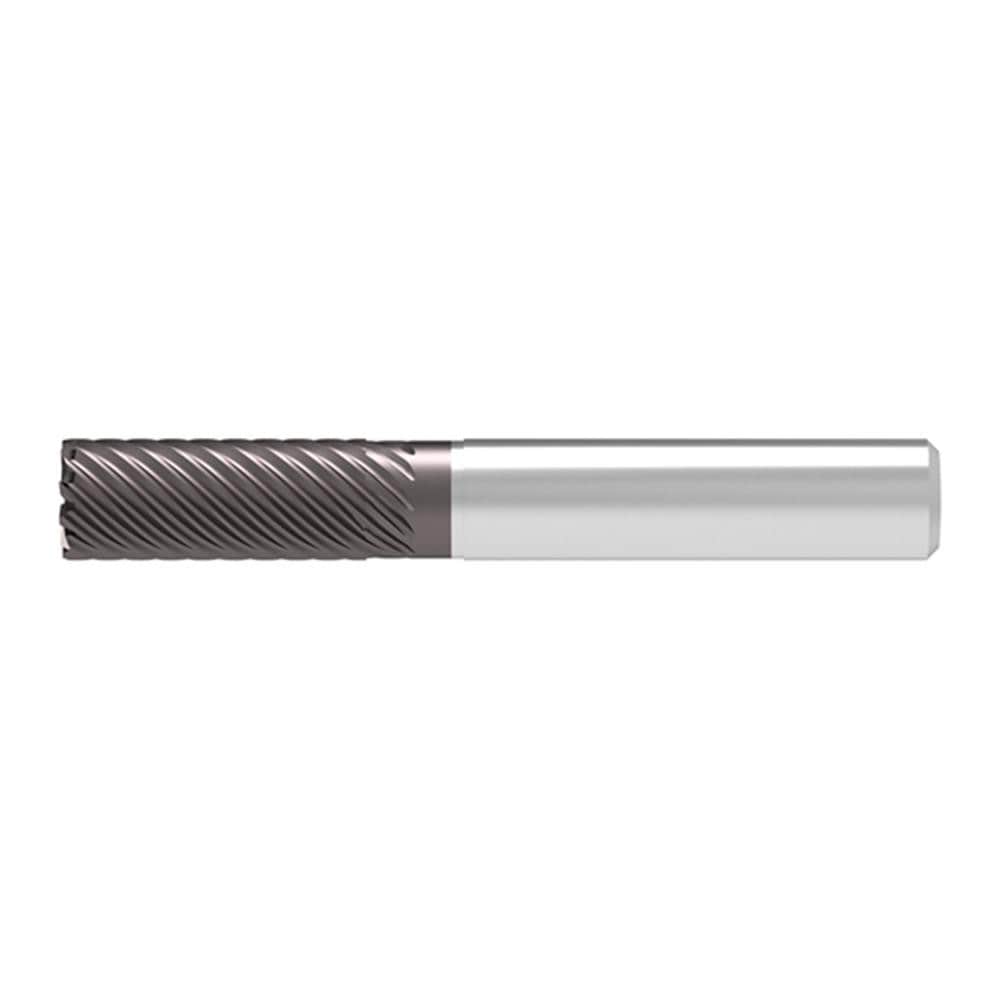

Square End Mill: 16.00 mm Dia, 35.00 mm LOC, 16 Flute, Solid Carbide
Item #: 75033142
Brand: WNT
Model #: 52109160
Product Specifications
| Mill Diameter (mm) | 16.00 |
| Mill Diameter (Decimal Inch) | 0.6299 |
| Number Of Flutes | 16 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 35.00 |
| Shank Diameter (mm) | 16.00 |
| Overall Length (mm) | 93.00 |
| Single Or Double End | Single |
| Coating/Finish Family | Ti1000 |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 50 |
| Coating/Finish | Ti1000 |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Neck Diameter (mm) | 15.80 |
| Series | 52109 |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 16.00 |
| Mill Diameter (Decimal Inch) | 0.6299 |
| Number Of Flutes | 16 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 35.00 |
| Shank Diameter (mm) | 16.00 |
| Overall Length (mm) | 93.00 |
| Single Or Double End | Single |
| Coating/Finish Family | Ti1000 |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 50 |
| Coating/Finish | Ti1000 |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Neck Diameter (mm) | 15.80 |
| Series | 52109 |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
| MSC Part # | 75033142 |
| Mfr Part # | 52109160 |
| Country of Origin Country of Origin is subject to change | France |
