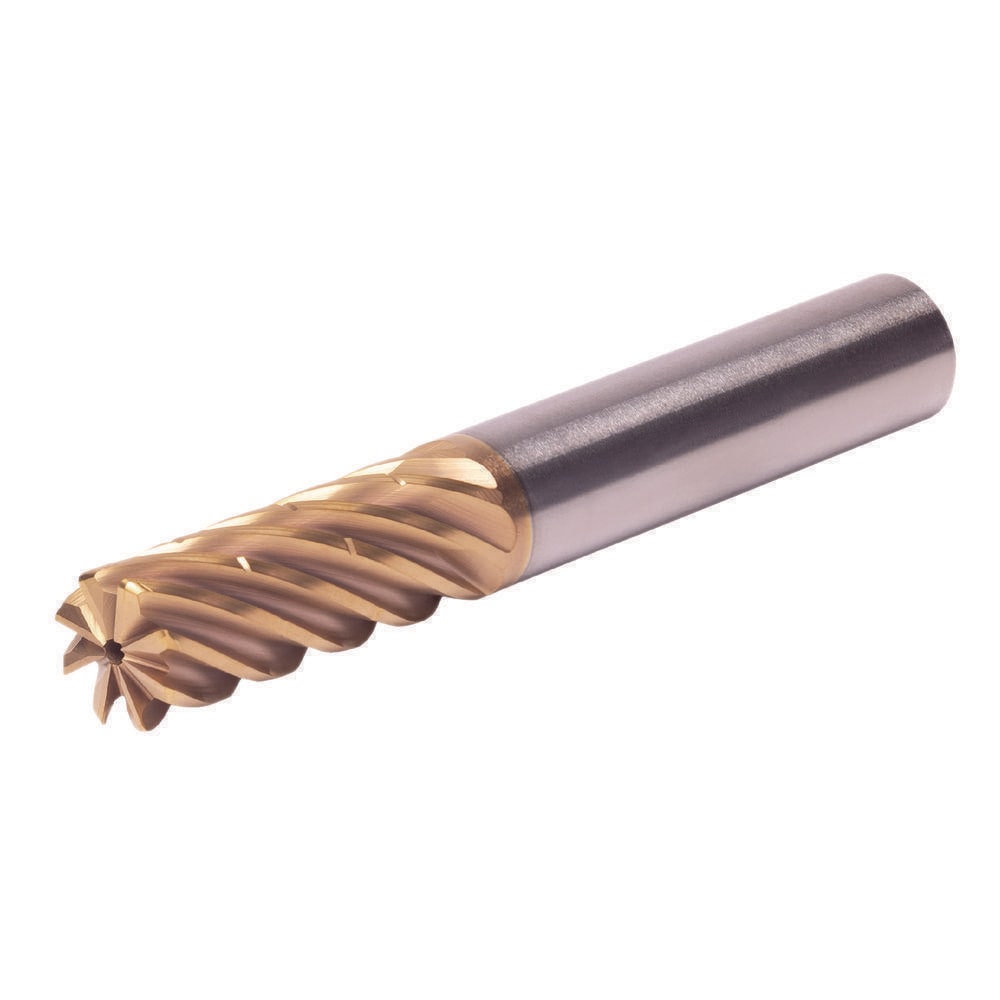

Corner Radius End Mill: 3/4" Dia, 1-5/8" LOC, 2.29 mm Radius, 8 Flute, Solid Carbide
Item #: 74089111
Brand: Kennametal
Model #: 7102893
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (mm) | 19.05 |
| Number Of Flutes | 8 |
| Length of Cut (mm) | 41.28 |
| Length of Cut (Inch) | 1-5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| Coating/Finish | AlCrN |
| Overall Length (Inch) | 4 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0900 |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 2.29 |
| Overall Length (mm) | 101.60 |
| Coolant Through | Yes |
| Overall Length (Decimal Inch) | 4.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (mm) | 19.05 |
| UNSPSC Code | 27112803 |
| Series | HARVI IV |
| Manufacturers Catalog Number | HA4R8RA0750R163HAR090D |
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (mm) | 19.05 |
| Number Of Flutes | 8 |
| Length of Cut (mm) | 41.28 |
| Length of Cut (Inch) | 1-5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| Coating/Finish | AlCrN |
| Overall Length (Inch) | 4 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0900 |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 2.29 |
| Overall Length (mm) | 101.60 |
| Coolant Through | Yes |
| Overall Length (Decimal Inch) | 4.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (mm) | 19.05 |
| UNSPSC Code | 27112803 |
| Series | HARVI IV |
| Manufacturers Catalog Number | HA4R8RA0750R163HAR090D |
| MSC Part # | 74089111 |
| Mfr Part # | 7102893 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
