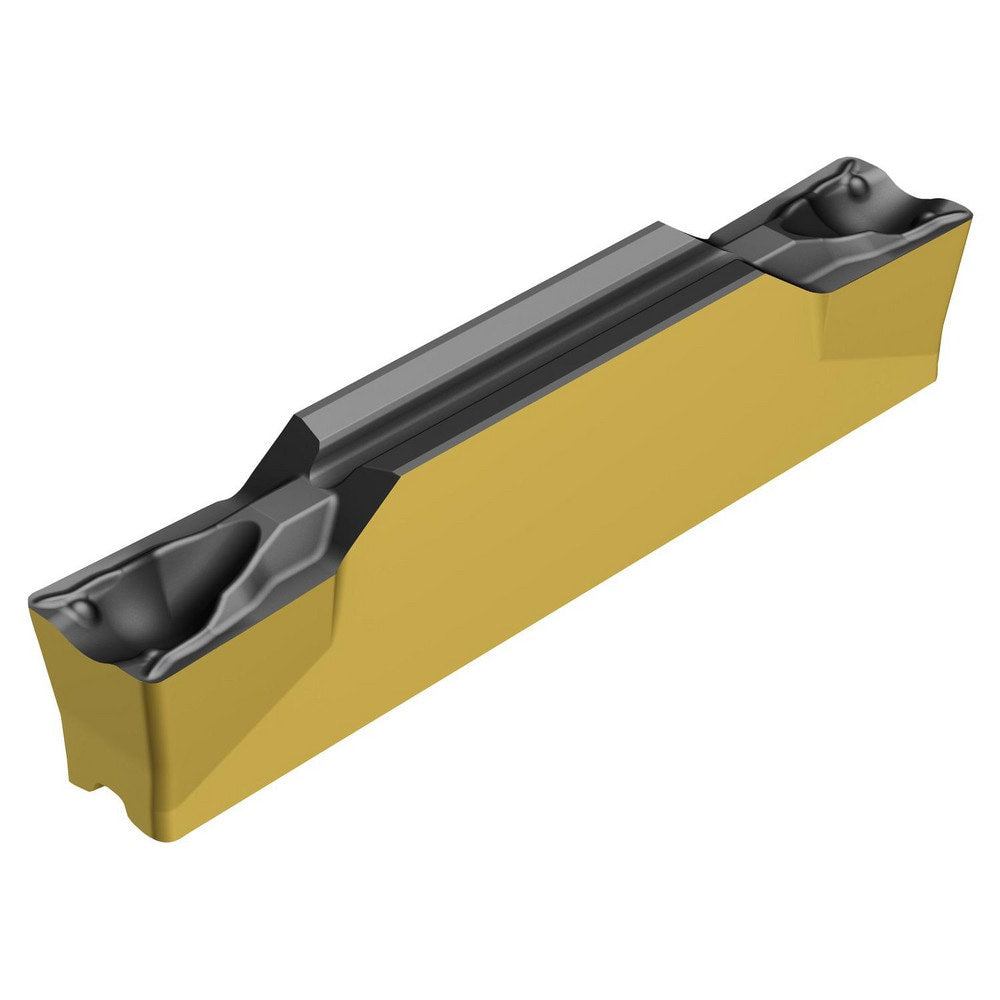

Grooving Insert: C2I H2 TF, 4425, Carbide
Item #: 74703703
Brand: Sandvik Coromant
Model #: 8194366
Product Specifications
| Insert Style | C2I |
| Insert Size Code | H |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Maximum Depth of Cut (mm) | 2.20 |
| Insert Material | Carbide |
| Manufacturer Grade | 4425 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.4 |
| Number Of Cutting Edges | 2 |
| Rake | Neutral |
| Measurement Type | Metric |
| Face Grooving | Yes |
| Insert Holding Method | Clamp |
| Insert Size | H2 |
| Cutting Height (mm) | 23.40 |
| Cutting Height (Decimal Inch) | 0.9213 |
| Lead Angle | 0.000 |
| Multi-use Tool | Yes |
| Series | C2I |
| Coating Process | CVD |
| Rake Angle | 11.000 |
| Overall Length (Decimal Inch) | 0.9718 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | C2I-H2N-0400-0004-TF4425 |
| Iso Code | C2I-H2N-0400-0004-TF4425 |
| Manufacturers Catalog Number | C2I-H2N-0400-0004-TF4425 |
| UNSPSC Code | 23242105 |
| Chip Breaker | TF |
| Insert Seat Size | 4 |
| Overall Width (mm) | 4.0000 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1575 |
| Coating/Finish | TiCN/Al2O3/TiN |
| For Use With | Indexable Grooving Toolholders |
| Insert Style | C2I |
| Insert Size Code | H |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Maximum Depth of Cut (mm) | 2.20 |
| Insert Material | Carbide |
| Manufacturer Grade | 4425 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.4 |
| Number Of Cutting Edges | 2 |
| Rake | Neutral |
| Measurement Type | Metric |
| Face Grooving | Yes |
| Insert Holding Method | Clamp |
| Insert Size | H2 |
| Cutting Height (mm) | 23.40 |
| Cutting Height (Decimal Inch) | 0.9213 |
| Lead Angle | 0.000 |
| Multi-use Tool | Yes |
| Series | C2I |
| Coating Process | CVD |
| Rake Angle | 11.000 |
| Overall Length (Decimal Inch) | 0.9718 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | C2I-H2N-0400-0004-TF4425 |
| Iso Code | C2I-H2N-0400-0004-TF4425 |
| Manufacturers Catalog Number | C2I-H2N-0400-0004-TF4425 |
| UNSPSC Code | 23242105 |
| Chip Breaker | TF |
| Insert Seat Size | 4 |
| Overall Width (mm) | 4.0000 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1575 |
| Coating/Finish | TiCN/Al2O3/TiN |
| For Use With | Indexable Grooving Toolholders |
| MSC Part # | 74703703 |
| Mfr Part # | 8194366 |
| Country of Origin Country of Origin is subject to change | Sweden |
