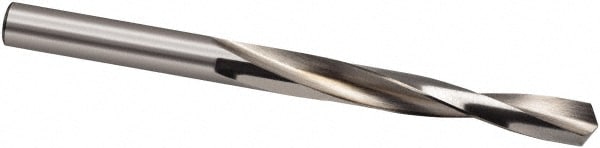

Jobber Drill: 6.45 mm Dia, 118 deg Point, High Speed Steel
Item #: 69317188
Brand: Guhring
Model #: 9002060064500
Product Specifications
| Drill Bit Size (mm) | 6.45 |
| Drill Bit Size (Decimal Inch) | 0.2539 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Slow Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | N |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (mm) | 101.00 |
| Overall Length (Decimal Inch) | 3.9764 |
| Spiral Type | Slow |
| Flute Length (mm) | 63.00 |
| Flute Length (Decimal Inch) | 2.4803 |
| Series | 206 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.45 |
| Maximum Drilling Depth (Decimal Inch) | 1.4375 |
| Maximum Drilling Depth (mm) | 53.33 |
| Shank Length (mm) | 38 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Drill Bit Size Range (mm) | 6.00 - 7.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 6.45 |
| Drill Bit Size (Decimal Inch) | 0.2539 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Slow Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | N |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (mm) | 101.00 |
| Overall Length (Decimal Inch) | 3.9764 |
| Spiral Type | Slow |
| Flute Length (mm) | 63.00 |
| Flute Length (Decimal Inch) | 2.4803 |
| Series | 206 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.45 |
| Maximum Drilling Depth (Decimal Inch) | 1.4375 |
| Maximum Drilling Depth (mm) | 53.33 |
| Shank Length (mm) | 38 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Drill Bit Size Range (mm) | 6.00 - 7.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 69317188 |
| Mfr Part # | 9002060064500 |
| Country of Origin Country of Origin is subject to change | Germany |
