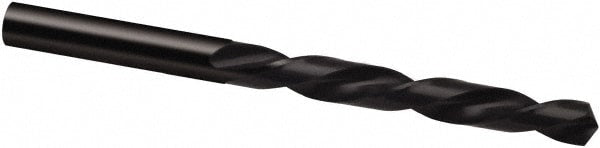

Jobber Drill: 13.40 mm Dia, 118 deg Point, High Speed Steel
Item #: 69327609
Brand: Guhring
Model #: 9002080134000
Product Specifications
| Drill Bit Size (mm) | 13.40 |
| Drill Bit Size (Decimal Inch) | 0.5276 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Oxide |
| Flute Type | Regular Spiral |
| Cutting Direction | Left Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.4531 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Spiral Type | Regular |
| Flute Length (mm) | 108.00 |
| Flute Length (Decimal Inch) | 4.2520 |
| Proprietary Coating/Finish | Steam Oxide |
| Series | 208 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 13.4 |
| Maximum Drilling Depth (Decimal Inch) | 2.5000 |
| Maximum Drilling Depth (mm) | 87.90 |
| Shank Length (mm) | 52 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 12.50 - 15.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 13.40 |
| Drill Bit Size (Decimal Inch) | 0.5276 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Oxide |
| Flute Type | Regular Spiral |
| Cutting Direction | Left Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.4531 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Spiral Type | Regular |
| Flute Length (mm) | 108.00 |
| Flute Length (Decimal Inch) | 4.2520 |
| Proprietary Coating/Finish | Steam Oxide |
| Series | 208 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 13.4 |
| Maximum Drilling Depth (Decimal Inch) | 2.5000 |
| Maximum Drilling Depth (mm) | 87.90 |
| Shank Length (mm) | 52 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 12.50 - 15.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 69327609 |
| Mfr Part # | 9002080134000 |
| Country of Origin Country of Origin is subject to change | Germany |
