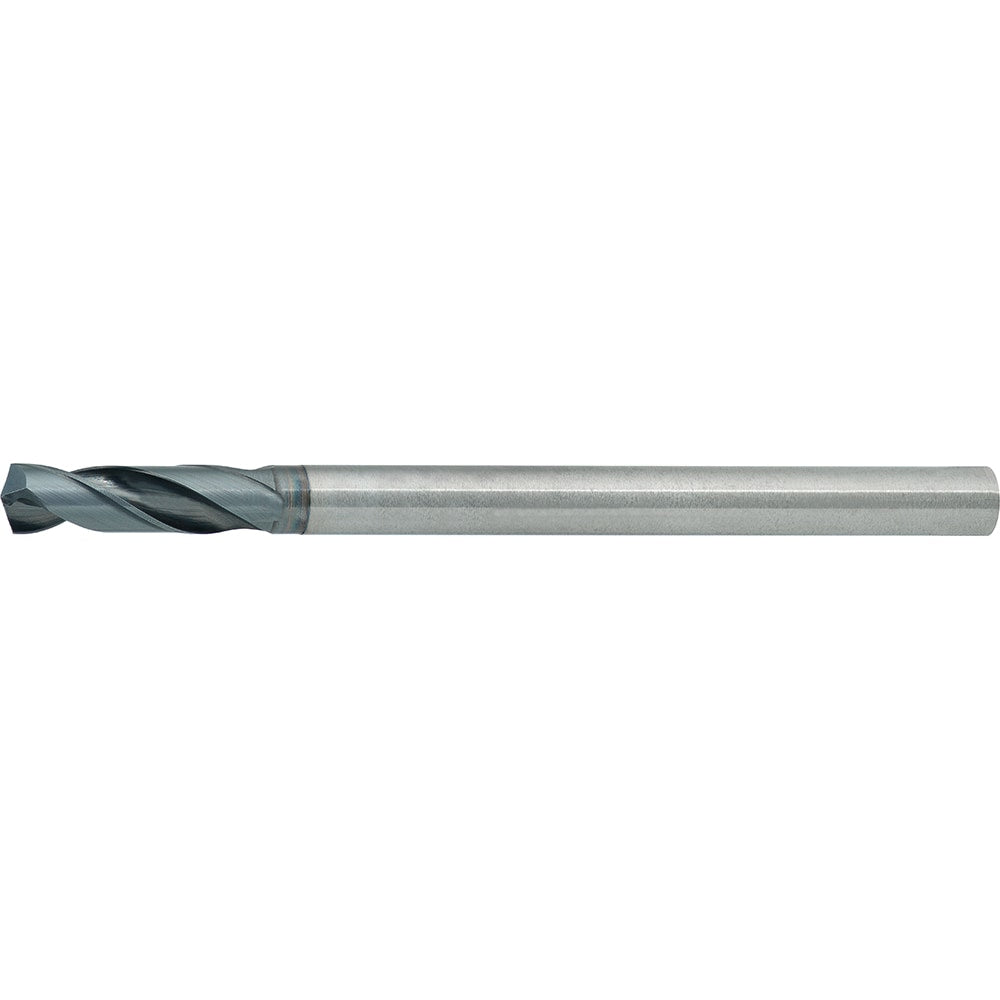

Extra Length Drill Bit: 0.3937", 140 °, Carbide
Item #: 71200000
Brand: Mitsubishi
Model #: 10608050
Product Specifications
| Drill Bit Size (mm) | 10.00 |
| Overall Length (mm) | 90.8000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 37.80 |
| Point Type | X-Thinning |
| Series | DWAE |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Carbon Steel; Structural Steel; Iron; Steel; Tempered Steel |
| Secondary Workpiece Material Code | P; K; M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Drill Point Length (mm) | 1.80 |
| Drill Point Length (Decimal Inch) | 0.0709 |
| Overall Length (Decimal Inch) | 3.5748 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.0000 |
| Shank Length (Decimal Inch) | 2.0079 |
| Shank Length (mm) | 51.000 |
| Flute Length (Decimal Inch) | 1.4882 |
| Flute By Diameter Ratio | 2xD |
| Maximum Drilling Depth (Decimal Inch) | 0.8583 |
| Maximum Drilling Depth (mm) | 21.80 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| Drill Bit Size (mm) | 10.00 |
| Overall Length (mm) | 90.8000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 37.80 |
| Point Type | X-Thinning |
| Series | DWAE |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Carbon Steel; Structural Steel; Iron; Steel; Tempered Steel |
| Secondary Workpiece Material Code | P; K; M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Drill Point Length (mm) | 1.80 |
| Drill Point Length (Decimal Inch) | 0.0709 |
| Overall Length (Decimal Inch) | 3.5748 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.0000 |
| Shank Length (Decimal Inch) | 2.0079 |
| Shank Length (mm) | 51.000 |
| Flute Length (Decimal Inch) | 1.4882 |
| Flute By Diameter Ratio | 2xD |
| Maximum Drilling Depth (Decimal Inch) | 0.8583 |
| Maximum Drilling Depth (mm) | 21.80 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| MSC Part # | 71200000 |
| Mfr Part # | 10608050 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
