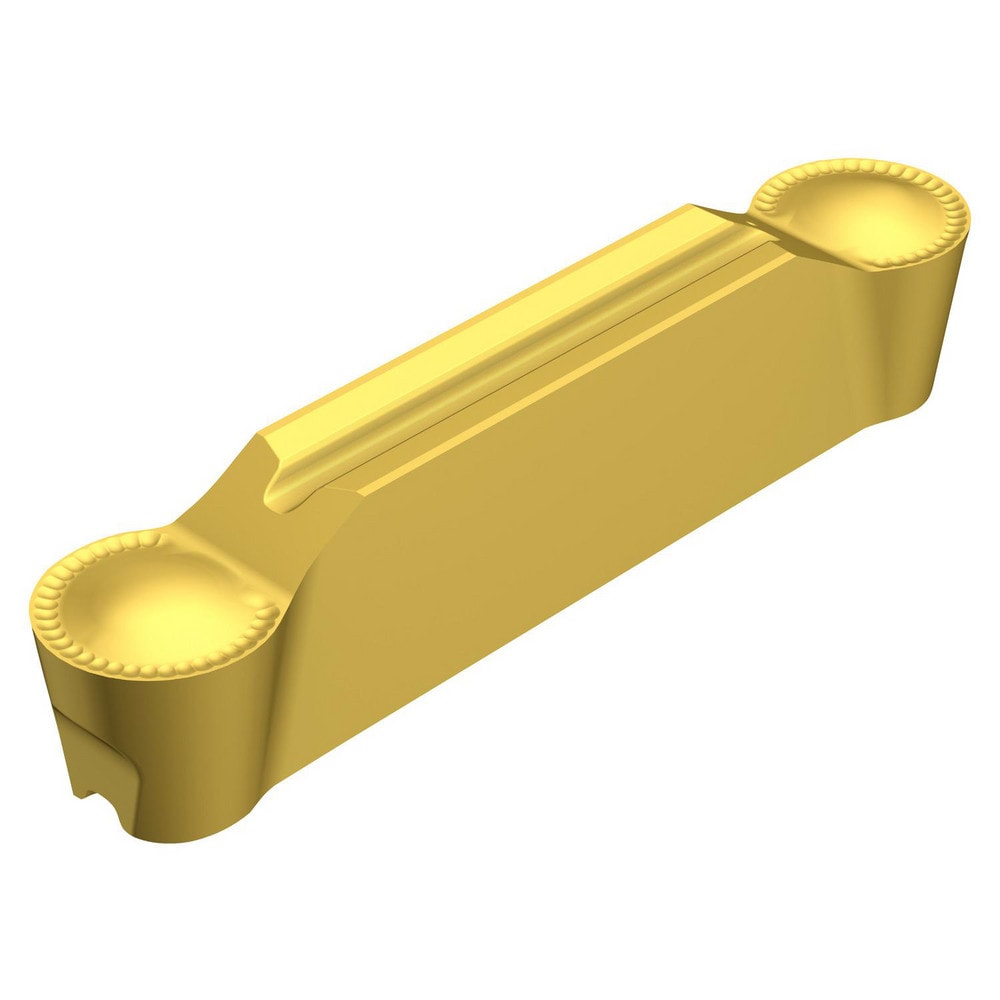

Profiling Insert: C2I-H2N-0500-RM 1135, 4.3500 mm Thickness
Item #: 70150271
Brand: Sandvik Coromant
Model #: 8290315
Product Specifications
| Insert Style | C2I |
| Insert Size Code | H2 |
| Insert Material | Carbide |
| Manufacturer Grade | 1135 |
| Thickness (mm) | 4.3500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0512 |
| Maximum Depth of Cut (mm) | 2.30 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0984 |
| Corner Radius (mm) | 2.50 |
| Relief Angle | 7.000 |
| Chipbreaker | RM |
| Series | CoroCut 2 |
| Coating Process | CVD |
| Insert Length (Decimal Inch) | 0.9850 |
| Insert Length (mm) | 25.02 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | C2I-H2N-0500-RM 1135 |
| Standards | ISO |
| Rake Angle | 0.000 |
| Side Length (Decimal Inch) | 0.9850 |
| Side Length (mm) | 25.02 |
| Applications | Profiling |
| Coating/Finish | TiCrN/Al2O3/TiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1713 |
| Width (Decimal Inch - 4 Decimals) | 0.1969 |
| Width (mm - 2 Decimals) | 5.00 |
| UNSPSC Code | 23242105 |
| Insert Style | C2I |
| Insert Size Code | H2 |
| Insert Material | Carbide |
| Manufacturer Grade | 1135 |
| Thickness (mm) | 4.3500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0512 |
| Maximum Depth of Cut (mm) | 2.30 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0984 |
| Corner Radius (mm) | 2.50 |
| Relief Angle | 7.000 |
| Chipbreaker | RM |
| Series | CoroCut 2 |
| Coating Process | CVD |
| Insert Length (Decimal Inch) | 0.9850 |
| Insert Length (mm) | 25.02 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | C2I-H2N-0500-RM 1135 |
| Standards | ISO |
| Rake Angle | 0.000 |
| Side Length (Decimal Inch) | 0.9850 |
| Side Length (mm) | 25.02 |
| Applications | Profiling |
| Coating/Finish | TiCrN/Al2O3/TiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1713 |
| Width (Decimal Inch - 4 Decimals) | 0.1969 |
| Width (mm - 2 Decimals) | 5.00 |
| UNSPSC Code | 23242105 |
| MSC Part # | 70150271 |
| Mfr Part # | 8290315 |
| Country of Origin Country of Origin is subject to change | Sweden |
