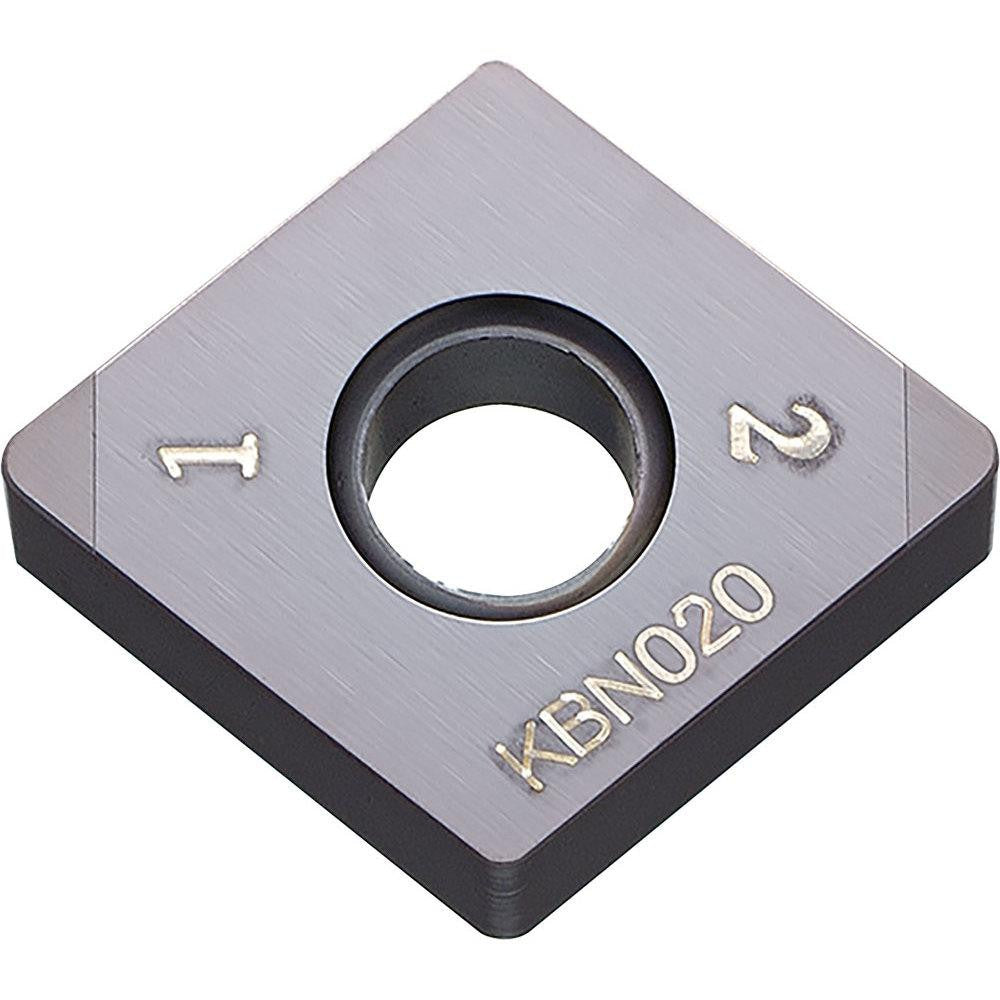

Turning Insert: CNGA433S00515MEW, Cubic Boron Nitride (CBN)
Item #: 70155353
Brand: Kyocera
Model #: TFD00126
Product Specifications
| ANSI Insert Code | CNGA |
| ISO Insert Code | CNGA |
| Relief Angle | 0.000 |
| Insert Style | CNGA |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80.00 |
| Manufacturer Grade | KBN010 |
| Coating/Finish | MEGACOAT TOUGH |
| Wiper Edge | Yes |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Diamond |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2032 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.1600 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Negative |
| Iso Code | CNGA120412S01215MEW |
| Standards | KBN010 |
| Manufacturers Catalog Number | CNGA433S00515MEWKBN010 |
| Chip Breaker | None |
| Cutting Edge Style | Honed; Wiper Edge |
| Industry Standard Number | CNGA120412S01215MEW |
| Multi-Use Tool | Yes |
| Tip Length (Decimal Inch) | 0.0984 |
| Tip Length (mm) | 2.50 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 433 |
| ANSI Insert Code | CNGA |
| ISO Insert Code | CNGA |
| Relief Angle | 0.000 |
| Insert Style | CNGA |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80.00 |
| Manufacturer Grade | KBN010 |
| Coating/Finish | MEGACOAT TOUGH |
| Wiper Edge | Yes |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Diamond |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2032 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.1600 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Negative |
| Iso Code | CNGA120412S01215MEW |
| Standards | KBN010 |
| Manufacturers Catalog Number | CNGA433S00515MEWKBN010 |
| Chip Breaker | None |
| Cutting Edge Style | Honed; Wiper Edge |
| Industry Standard Number | CNGA120412S01215MEW |
| Multi-Use Tool | Yes |
| Tip Length (Decimal Inch) | 0.0984 |
| Tip Length (mm) | 2.50 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 433 |
| MSC Part # | 70155353 |
| Mfr Part # | TFD00126 |
| Country of Origin Country of Origin is subject to change | Ireland |
