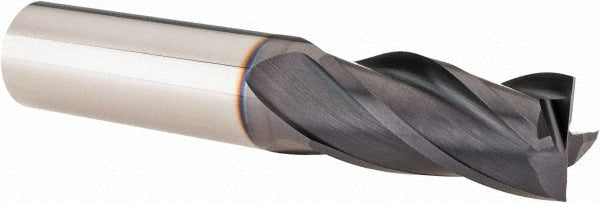

Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/8; Mill Diameter (Decimal Inch): 0.6250; Number Of Flutes: 4; Length of Cut (Inch): 1-1/4; Single Or Double End: Single; End Mill Material: Solid Carbide; Chipbreaker: No; Coating/Finish: F
Item #: 75779256
Brand: Guhring
Model #: 9031530158700
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | FIREX |
| Overall Length (Inch) | 3-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Helix Angle | 30 |
| Overall Length (Decimal Inch) | 3.5000 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Maximum Helix Angle | 30 |
| Mill Diameter Tolerance | h10 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material Code | S; N |
| Material Grade | Proprietary |
| Series | 3153 |
| Country of Origin | Germany |
