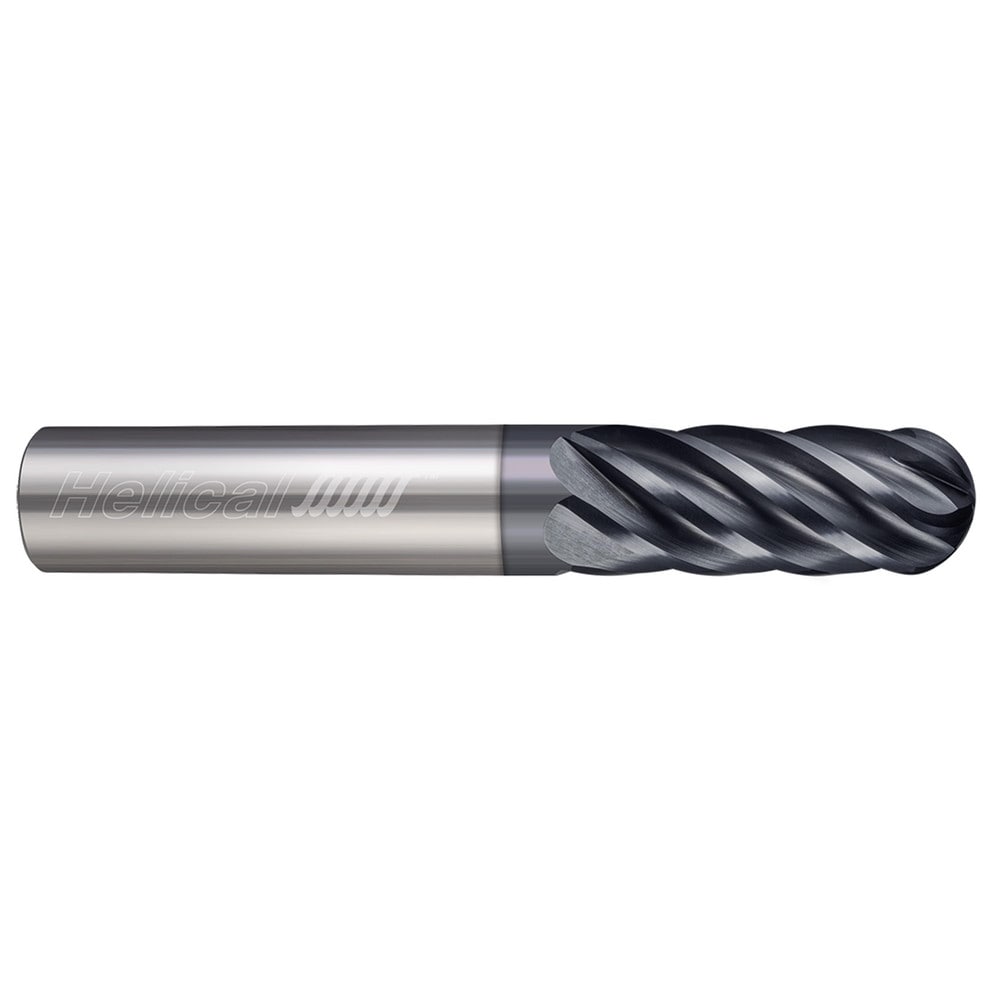

Ball End Mill: 1/2" Dia, 3-1/8" LOC, 6 Flute, Solid Carbide
Item #: 80679731
Brand: Helical Solutions
Model #: 88357
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 3-1/8 |
| Coating/Finish | APLUS |
| Overall Length (Inch) | 6 |
| Shank Diameter (Inch) | 1/2 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | Yes |
| Helix Angle | 37 |
| Overall Length (Decimal Inch) | 6.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Type | Standard |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (mm) | 12.70 |
| Series | Steels - 6 Flute - Ball - Variable Pitch |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 3.1250 |
| System Of Measurement | Decimal Inch |
| Country of Origin | UNITED STATES |
