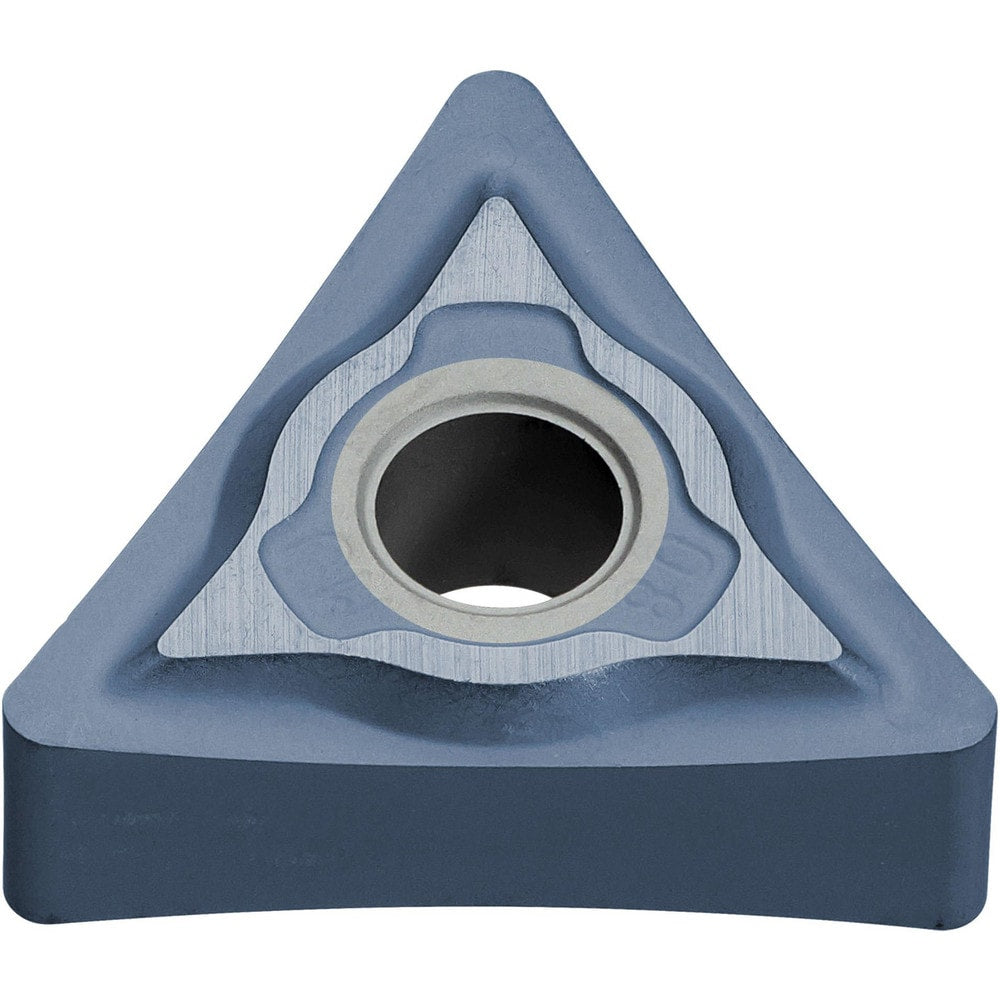

Turning Insert: TNMG331MJ MP9015, Carbide
Item #: 81552051
Brand: Mitsubishi
Model #: 10587133
Product Specifications
| ANSI Insert Code | TNMG |
| ISO Insert Code | TNMG |
| Relief Angle | 0.000 |
| Insert Style | TNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.00 |
| Manufacturer Grade | MP9015 |
| Coating/Finish | PVD |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.52 |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | T |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Heat Resistant Alloy |
| Primary Workpiece Material Code | S |
| Coating Classification | PVD |
| Chip Breaker | MJ |
| Rake Angle | 0 |
| Full Radius | No |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3 |
| Country of Origin | Japan |
