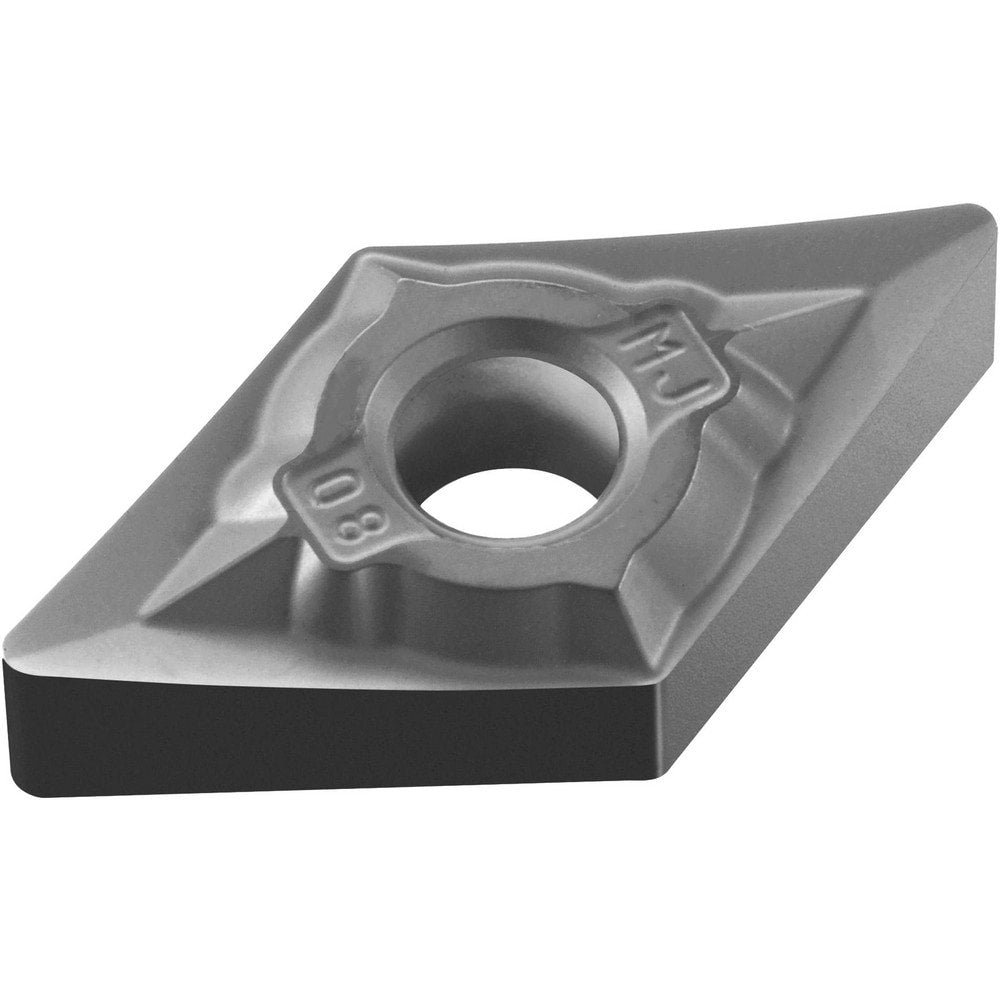

Turning Insert: DNGM431MJ HTI10, Carbide
Item #: 81560278
Brand: Mitsubishi
Model #: 198336
Product Specifications
| ANSI Insert Code | DNGM |
| ISO Insert Code | DNGM |
| Relief Angle | 0.000 |
| Insert Style | DNGM |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55.00 |
| Manufacturer Grade | HTI10 |
| Coating/Finish | Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 55° |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Negative |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Coating Classification | Uncoated |
| Chip Breaker | MJ |
| Rake Angle | 0 |
| Full Radius | No |
| UNSPSC Code | 23242105 |
| Insert Size Code | 4 |
| Country of Origin | Japan |
