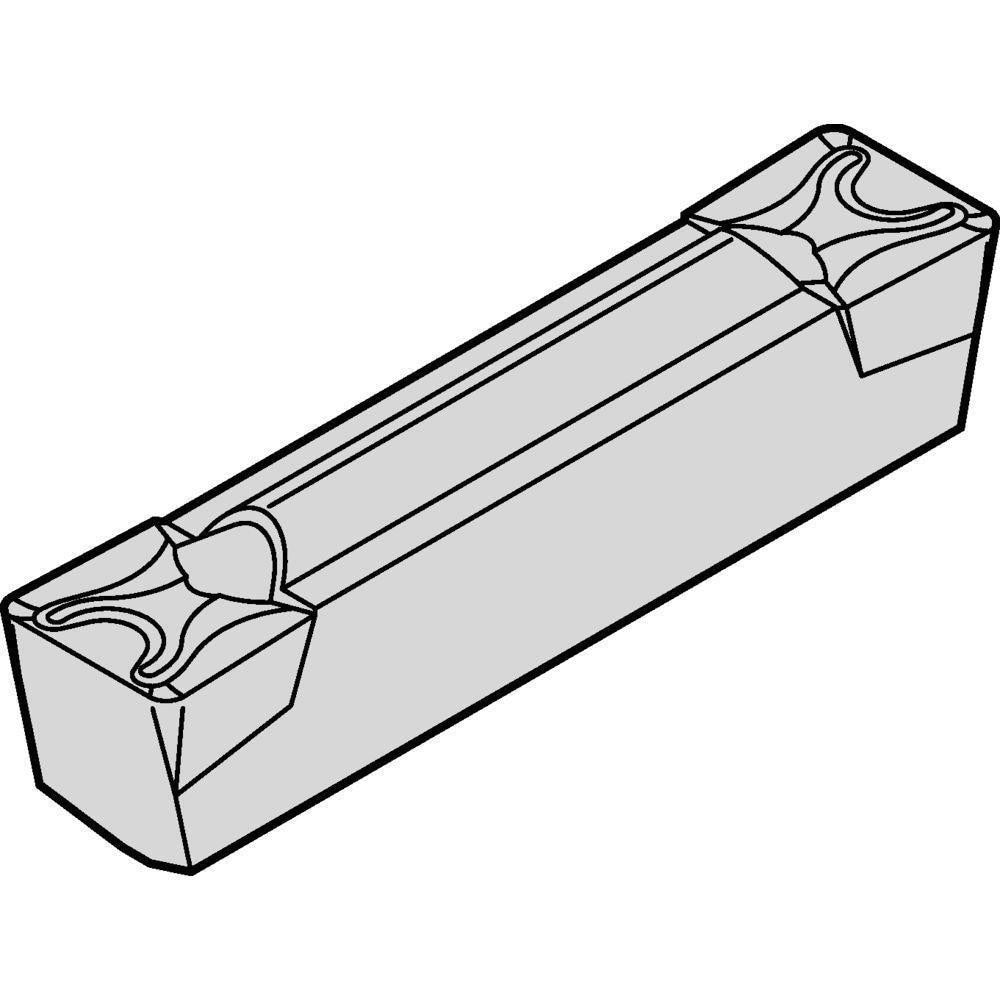

Grooving Insert: A4G-P-GMN GMN, KCU10B, Carbide
Item #: 75493908
Brand: Kennametal
Model #: 7097845
Product Specifications
| Insert Style | A4G-P-GMN |
| Insert Size Code | 10 |
| Cutting Width (Decimal Inch) | 0.3750 |
| Cutting Width (mm) | 9.53 |
| Insert Hand | Neutral |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10B |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Rake | Positive |
| Measurement Type | Metric |
| Insert Holding Method | Clamp |
| Lead Angle | 0 |
| Multi-use Tool | Yes |
| Series | A4 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GMN |
| Insert Seat Size | 10 |
| Coating/Finish | AlTiN |
| Country of Origin | Germany |
