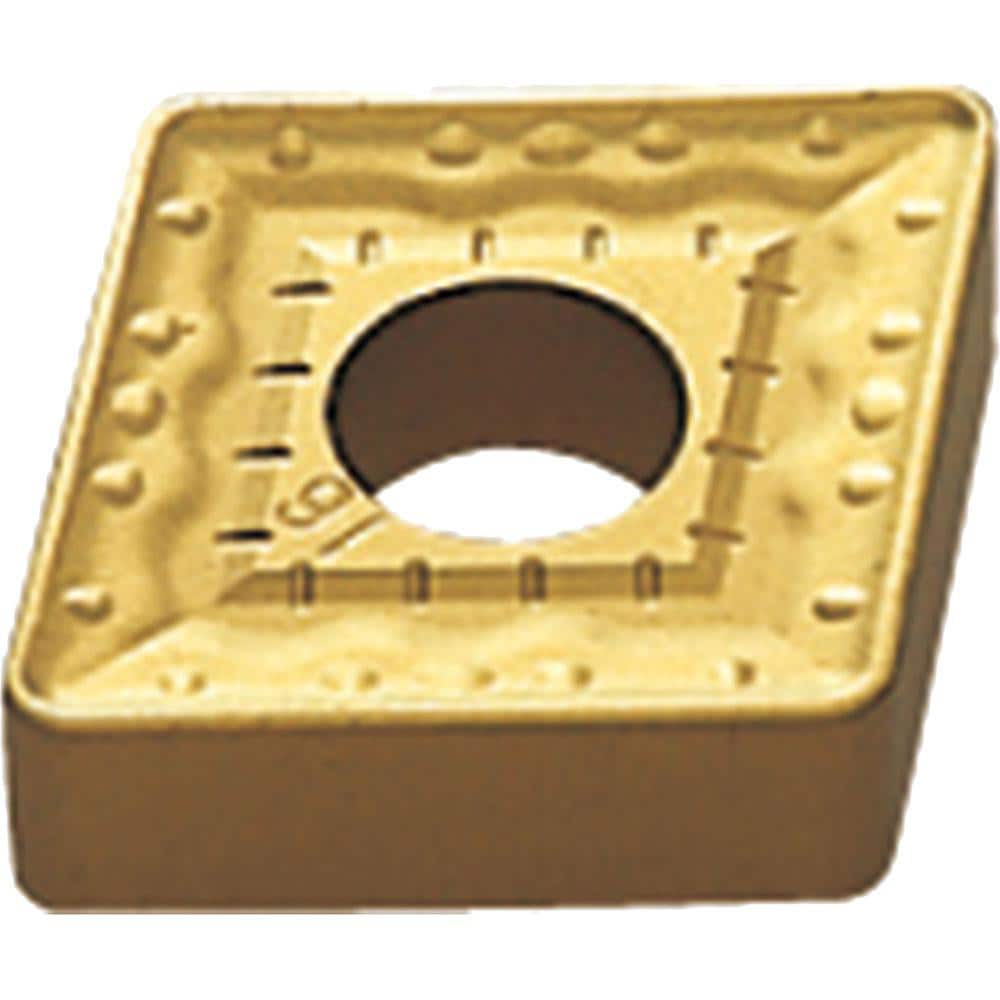

Turning Insert: CNMM866HV UE6110, Carbide
Item #: 81560120
Brand: Mitsubishi
Model #: 440524
Product Specifications
| ANSI Insert Code | CNMM |
| ISO Insert Code | CNMM |
| Relief Angle | 0.000 |
| Insert Style | CNMM |
| Corner Radius (mm) | 2.40 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Included Angle | 80.00 |
| Manufacturer Grade | UE6110 |
| Coating/Finish | CVD |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/8 |
| Insert Thickness | 9.52 |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (mm) | 25.40 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 80° |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Coating Classification | CVD |
| Chip Breaker | HV |
| Rake Angle | 0 |
| Full Radius | No |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1 |
| Country of Origin | Japan |
