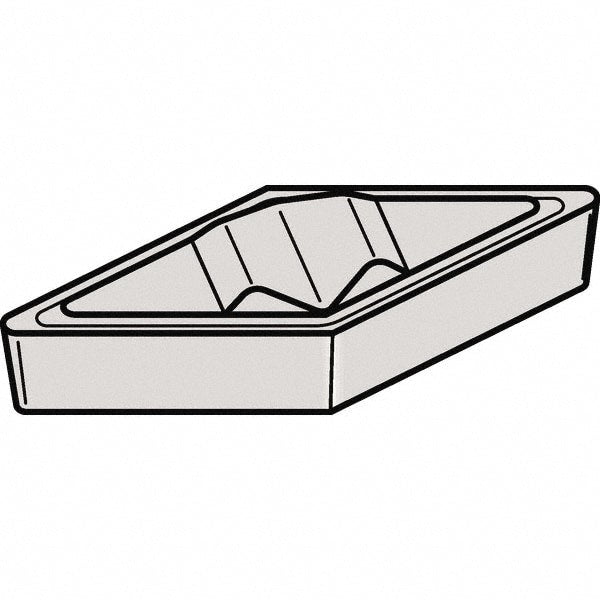

Profiling Insert: VPGR3305 KCU10B, 3/16" Thick, 3/8" Inscribed Circle
Item #: 73572398
Brand: Kennametal
Model #: 7096320
Product Specifications
| Insert Style | VPGR |
| Insert Size Code | 3305 |
| Insert Material | Carbide |
| Width (Inch) | 3/16 |
| Manufacturer Grade | KCU10B |
| Thickness (Inch) | 3/16 |
| Thickness (mm) | 4.7600 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Included Angle | 35.00 |
| Relief Angle | 8.000 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Coating Process | PVD |
| Iso Code | VCGR160402 |
| Rake Angle | 8.000 |
| Shape | Parallelogram |
| Coating/Finish | AlTiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Width (Decimal Inch - 4 Decimals) | 0.1875 |
| Width (mm - 2 Decimals) | 4.76 |
| UNSPSC Code | 23242105 |
| Insert Style | VPGR |
| Insert Size Code | 3305 |
| Insert Material | Carbide |
| Width (Inch) | 3/16 |
| Manufacturer Grade | KCU10B |
| Thickness (Inch) | 3/16 |
| Thickness (mm) | 4.7600 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Included Angle | 35.00 |
| Relief Angle | 8.000 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Coating Process | PVD |
| Iso Code | VCGR160402 |
| Rake Angle | 8.000 |
| Shape | Parallelogram |
| Coating/Finish | AlTiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Width (Decimal Inch - 4 Decimals) | 0.1875 |
| Width (mm - 2 Decimals) | 4.76 |
| UNSPSC Code | 23242105 |
| MSC Part # | 73572398 |
| Mfr Part # | 7096320 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
