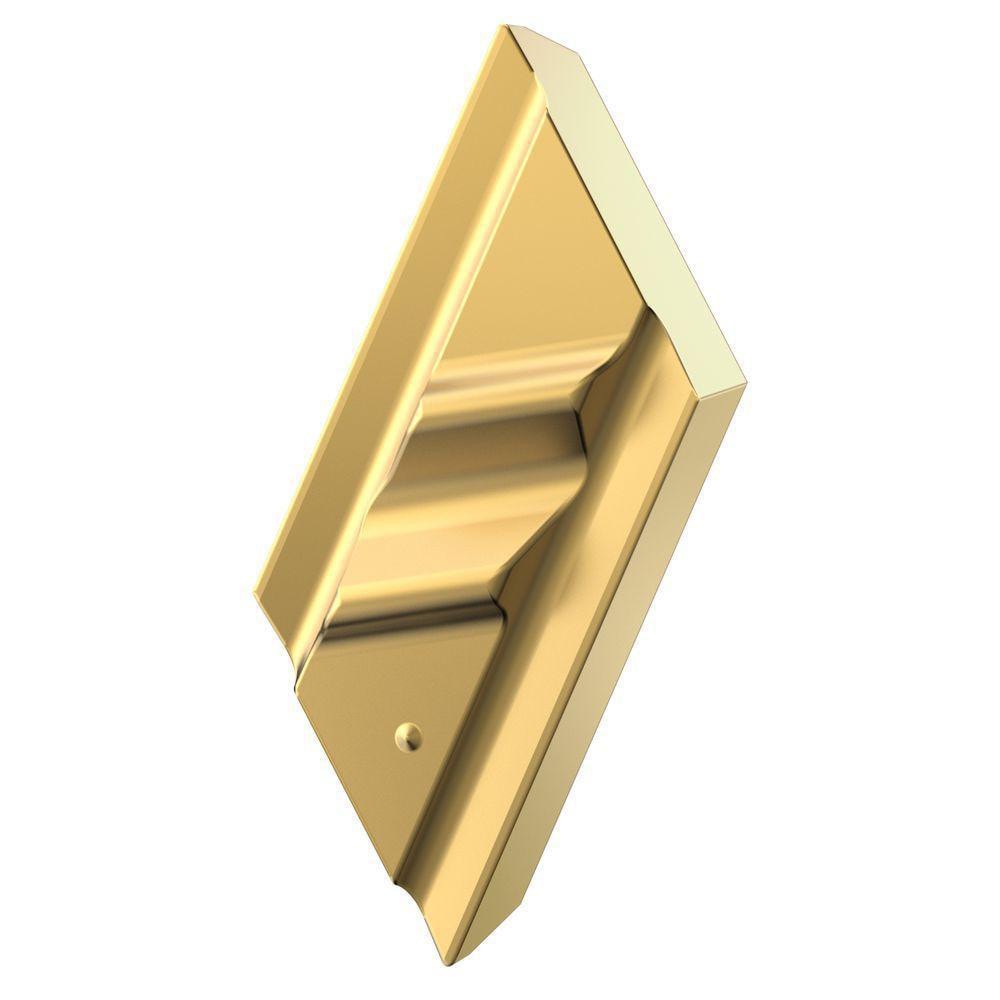

Profiling Insert: NPR52 KCU10B, 0.1250" Thickness, 0.2490" Inscribed Circle
Item #: 73572372
Brand: Kennametal
Model #: 7096314
Product Specifications
| Insert Style | NPR |
| Insert Size Code | 52 |
| Insert Material | Carbide |
| Width (Inch) | 1/8 |
| Manufacturer Grade | KCU10B |
| Thickness (Inch) | 1/8 |
| Thickness (mm) | 3.1800 |
| Insert Holding Method | Clamp |
| Insert Hand | Right Hand |
| Corner Radius (Decimal Inch) | 0.0312 |
| Corner Radius (mm) | 0.79 |
| Included Angle | 55.00 |
| Relief Angle | 8.000 |
| Inscribed Circle (Decimal Inch) | 0.2490 |
| Inscribed Circle (mm) | 6.33 |
| Coating Process | PVD |
| Iso Code | KCGX110308R15 |
| Rake Angle | 8.000 |
| Shape | Parallelogram |
| Coating/Finish | AlTiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Width (Decimal Inch - 4 Decimals) | 0.1250 |
| Width (mm - 2 Decimals) | 3.18 |
| UNSPSC Code | 23242105 |
| Insert Style | NPR |
| Insert Size Code | 52 |
| Insert Material | Carbide |
| Width (Inch) | 1/8 |
| Manufacturer Grade | KCU10B |
| Thickness (Inch) | 1/8 |
| Thickness (mm) | 3.1800 |
| Insert Holding Method | Clamp |
| Insert Hand | Right Hand |
| Corner Radius (Decimal Inch) | 0.0312 |
| Corner Radius (mm) | 0.79 |
| Included Angle | 55.00 |
| Relief Angle | 8.000 |
| Inscribed Circle (Decimal Inch) | 0.2490 |
| Inscribed Circle (mm) | 6.33 |
| Coating Process | PVD |
| Iso Code | KCGX110308R15 |
| Rake Angle | 8.000 |
| Shape | Parallelogram |
| Coating/Finish | AlTiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Width (Decimal Inch - 4 Decimals) | 0.1250 |
| Width (mm - 2 Decimals) | 3.18 |
| UNSPSC Code | 23242105 |
| MSC Part # | 73572372 |
| Mfr Part # | 7096314 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
