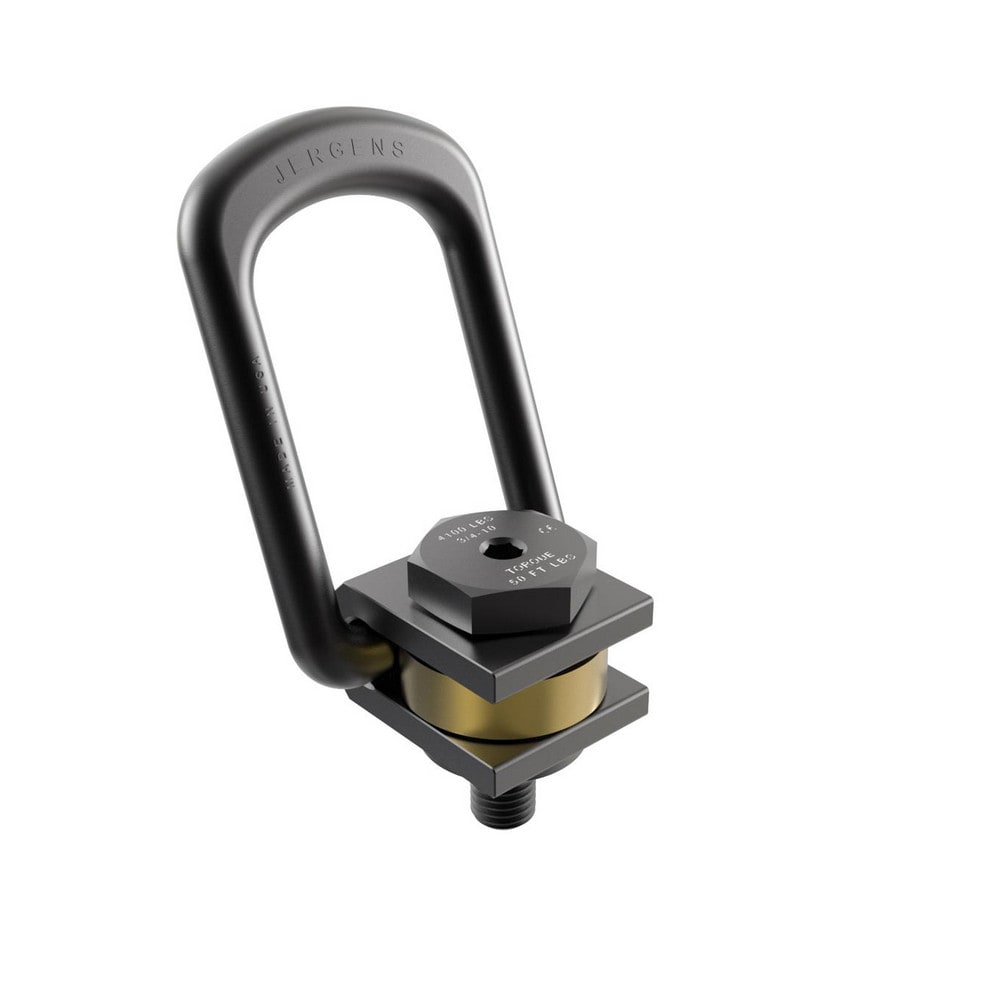

Side Pull Hoist Ring: Bolt-On, 4100 lb Capacity, 360°
Item #: 86789161
Brand: Jergens
Model #: 47535
Product Specifications
| Hoist Ring Type | Side Pull |
| Load Capacity (Lbs) | 4100 |
| Thread Size | 3/4-10 |
| Radius (mm) | 51 |
| Radius (Decimal Inch) | 2 |
| Ring Height (Decimal Inch) | 5.6875 |
| Material | Alloy Steel |
| Ring Thickness (mm) | 16 |
| Ring External Width (Inch) | 3.875 |
| Ring External Width (mm) | 99 |
| Ring Internal Width (mm) | 67 |
| Ring Internal Width (Inch) | 2.625 |
| Movement Type | 360° |
| Finish | Black Oxide |
| Material Grade | Alloy Steel |
| Mount Type | Bolt-On |
| Number Of Mounting Holes | 1 |
| Fabrication | Forged |
| Standards | ASTM E1444 |
| Ring Opening (Decimal Inch) | 4 |
| Ring Outside Diameter (Decimal Inch) | 3.875 |
| Ring Width (mm) | 99 |
| UNSPSC Code | 24101600 |
| Ring Width (Inch) | 3-7/8 |
| Hex Size (Inch) | 3/8 |
| Ring Width (Decimal Inch) | 3.875 |
| Mounting Surface Diameter (Decimal Inch) | 1.88 |
| Clevis Height (mm) | 59 |
| Head/Holder Diameter (Fractional Inch) | 2-1/4 |
| Clevis Width (Inch) | 2-1/4 |
| Mounting Surface Diameter (mm) | 48 |
| Clevis Height (Inch) | 2-5/16 |
| Clevis Width (mm) | 57 |
| Ring Opening (mm) | 102 |
| Country of Origin | UNITED STATES |
