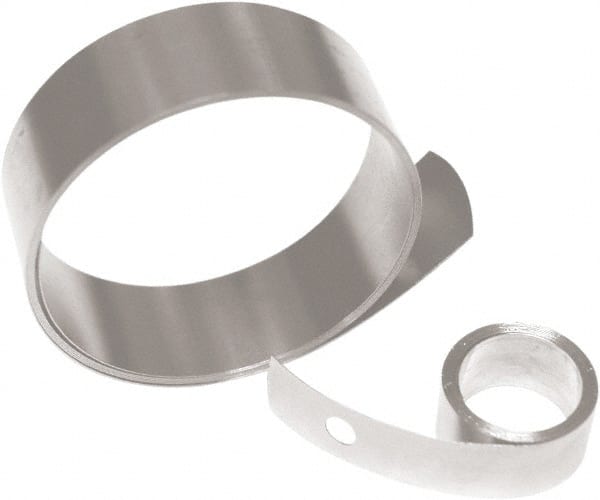

Associated Spring Raymond - 0.015" Thick x 48" Long, 19.43 N Capacity Constant Force Spring - 1-1/4" Wide, 2.03" ID of Reflection, 2.29" Initial Extension, 0.2" End Hole Diam
Item #: 69079259
Brand: Associated Spring Raymond
Model #: CF0480437
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Width (mm) | 31-3/4 |
| Thickness (mm) | 0.38 |
| Length (mm) | 1219.20 |
| Inside Diameter of Reflection (mm) | 51.56 |
| Load Capacity (N) | 19.43000031 |
| Initial Extension (mm) | 58.17 |
| Inside Diameter of Reflection (Decimal Inch) | 2.0300 |
| Initial Extension (Decimal Inch) | 2.2900 |
| End Hole Diameter (Decimal Inch) | 0.2000 |
| End Hole Diameter (mm) | 5.08 |
| Length (Decimal Inch) | 48 |
| Thickness (Decimal Inch) | 0.0150 |
| Width (Decimal Inch) | 1-1/4 |
