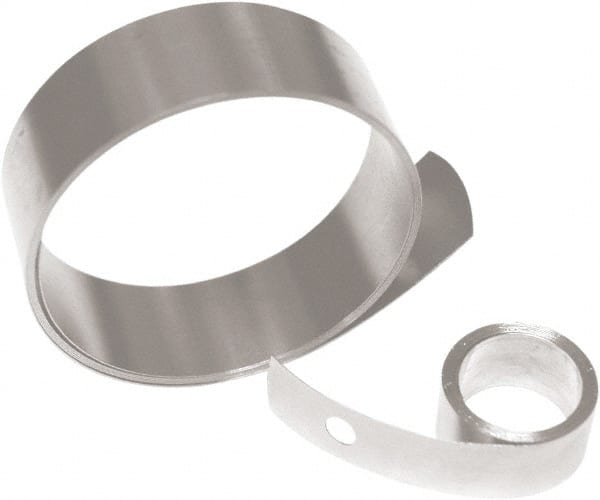

Associated Spring Raymond - 0.016" Thick x 46" Long, 18.23 N Capacity Constant Force Spring - 1" Wide, 1.96" ID of Reflection, 2.21" Initial Extension, 0.2" End Hole Diam
Item #: 69079275
Brand: Associated Spring Raymond
Model #: CF0460410
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Width (mm) | 25.40 |
| Thickness (mm) | 0.41 |
| Length (mm) | 1168.40 |
| Inside Diameter of Reflection (mm) | 49.78 |
| Load Capacity (N) | 18.22999954 |
| Initial Extension (mm) | 56.13 |
| Inside Diameter of Reflection (Decimal Inch) | 1.9600 |
| Initial Extension (Decimal Inch) | 2.2100 |
| End Hole Diameter (Decimal Inch) | 0.2000 |
| End Hole Diameter (mm) | 5.08 |
| Length (Decimal Inch) | 46 |
| Thickness (Decimal Inch) | 0.0160 |
| Width (Decimal Inch) | 1 |
