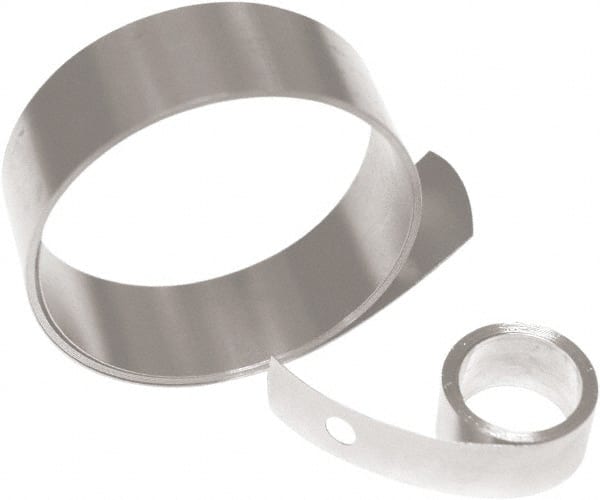

Associated Spring Raymond - 0.01" Thick x 35" Long, 6.49 N Capacity Constant Force Spring - 0.63" Wide, 1.36" ID of Reflection, 1.53" Initial Extension, 0.2" End Hole Diam
Item #: 69079325
Brand: Associated Spring Raymond
Model #: CF0350146
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Width (mm) | 16 |
| Thickness (mm) | 1/4 |
| Length (mm) | 889 |
| Inside Diameter of Reflection (mm) | 34.54 |
| Load Capacity (N) | 6.48999977 |
| Initial Extension (mm) | 38.86 |
| Inside Diameter of Reflection (Decimal Inch) | 1.3600 |
| Initial Extension (Decimal Inch) | 1.5300 |
| End Hole Diameter (Decimal Inch) | 0.2000 |
| End Hole Diameter (mm) | 5.08 |
| Length (Decimal Inch) | 35 |
| Thickness (Decimal Inch) | 0.0100 |
| Width (Decimal Inch) | 0.6300 |
