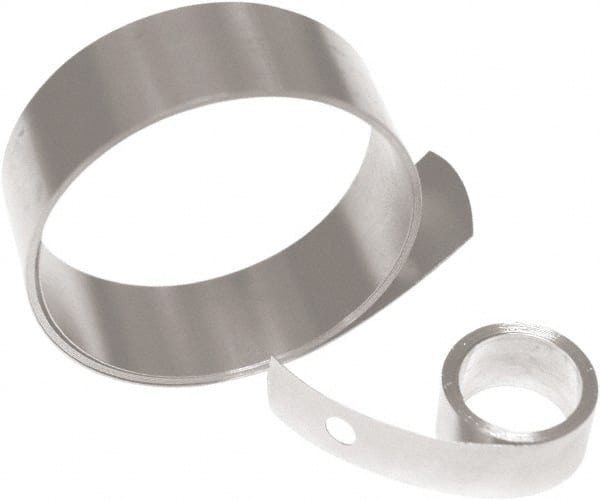

Associated Spring Raymond - 0.01" Thick x 33" Long, 22.02 N Capacity Constant Force Spring - 3/4" Wide, 0.71" ID of Reflection, 1.53" Initial Extension, 0.19" End Hole Diam
Item #: 69079341
Brand: Associated Spring Raymond
Model #: CF0330495
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Width (mm) | 19.05 |
| Thickness (mm) | 1/4 |
| Length (mm) | 838.20 |
| Inside Diameter of Reflection (mm) | 18.03 |
| Load Capacity (N) | 22.02000046 |
| Initial Extension (mm) | 38.86 |
| Inside Diameter of Reflection (Decimal Inch) | 0.7100 |
| Initial Extension (Decimal Inch) | 1.5300 |
| End Hole Diameter (Decimal Inch) | 0.1900 |
| End Hole Diameter (mm) | 4.83 |
| Length (Decimal Inch) | 33 |
| Thickness (Decimal Inch) | 0.0100 |
| Width (Decimal Inch) | 3/4 |
