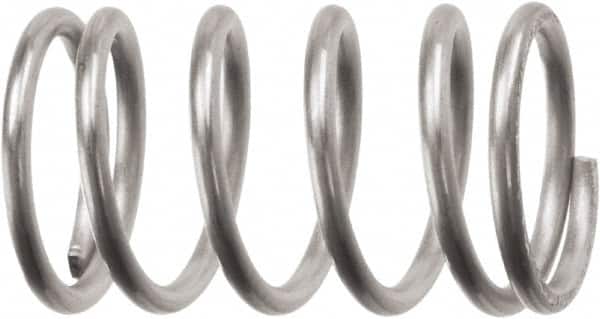

Compression Spring: 1.937″ OD, 6″ Free Length 5.26 mm Wire Dia, 427.29 N Max Load, Stainless Steel
Item #: 69079648
Brand: Associated Spring Raymond
Model #: C19372076000X
Product Specifications
| Type | Compression |
| Outside Diameter (mm) | 49.20 |
| Outside Diameter (Decimal Inch) | 1.9370 |
| Outside Diameter (Inch) | 1.9370 |
| Free Length (Decimal Inch) | 6 |
| Free Length (mm) | 152.40 |
| Free Length | 6 |
| Material | Stainless Steel |
| Spring Rate Pounds per Inch | 42.15 in.lb |
| Spring Rate Newtons | 42.15 in.lb |
| Maximum Work Load (N) | 427.29000000 |
| Solid Height (Decimal Inch) | 2.6040 |
| Solid Height (mm) | 66.14 |
| Spring Rate | 42.15 in.lb |
| Wire Size (Decimal Inch) | 0.2070 |
| Wire Size (mm) | 5.26 |
