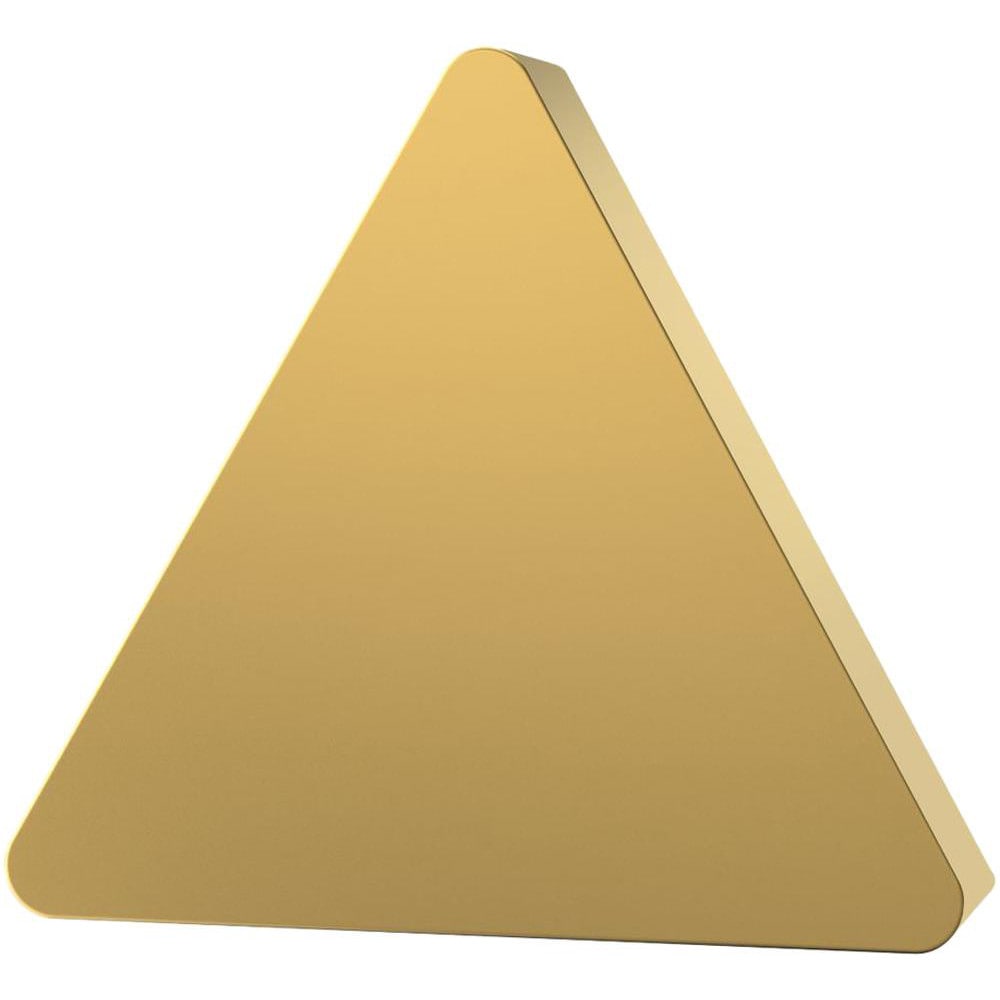

Turning Insert: TPG542 KCP25C, Carbide
Item #: 84458470
Brand: Kennametal
Model #: 7088251
Product Specifications
| ANSI Insert Code | TPG |
| ISO Insert Code | TPG |
| Relief Angle | 11.000 |
| Insert Style | TPG |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 60.00 |
| Manufacturer Grade | KCP25C |
| Coating/Finish | MT-TiCN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | Kendex™ Positive Inserts |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (mm) | 15.88 |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Insert Holding Method | Clamp |
| Width (Inch) | 5/8 |
| Clearance Code | P |
| Tolerance Code | G |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.0825 |
| Insert Length (mm) | 27.50 |
| Chip Breaker | None |
| Rake Angle | 0 |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Width (mm - 2 Decimals) | 15.88 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 542 |
| Country of Origin | UNITED STATES |
