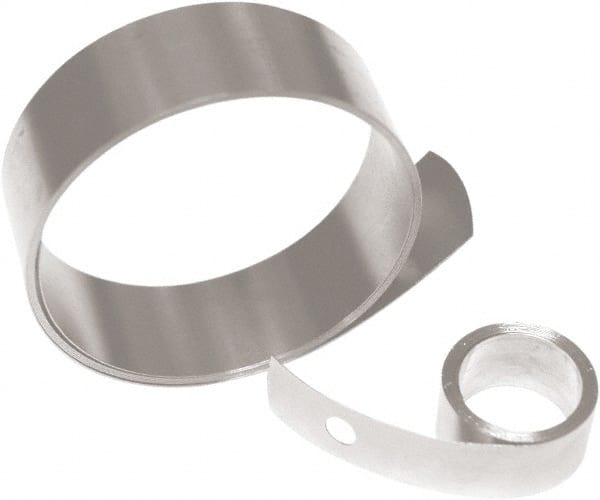

Associated Spring Raymond - 0.005" Thick x 17" Long, 4.58 N Capacity Constant Force Spring - 5/16" Wide, 0.37" ID of Reflection, 3/4" Initial Extension, 0.13" End Hole Diam
Item #: 69082337
Brand: Associated Spring Raymond
Model #: CF0170103
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Width (mm) | 7.92 |
| Thickness (mm) | 0.13 |
| Length (mm) | 431.80 |
| Inside Diameter of Reflection (mm) | 9.40 |
| Load Capacity (N) | 4.57999992 |
| Initial Extension (mm) | 19.05 |
| Inside Diameter of Reflection (Decimal Inch) | 0.3700 |
| Initial Extension (Decimal Inch) | 3/4 |
| End Hole Diameter (Decimal Inch) | 0.1300 |
| End Hole Diameter (mm) | 3.30 |
| Length (Decimal Inch) | 17 |
| Thickness (Decimal Inch) | 0.0050 |
| Width (Decimal Inch) | 0.3120 |
