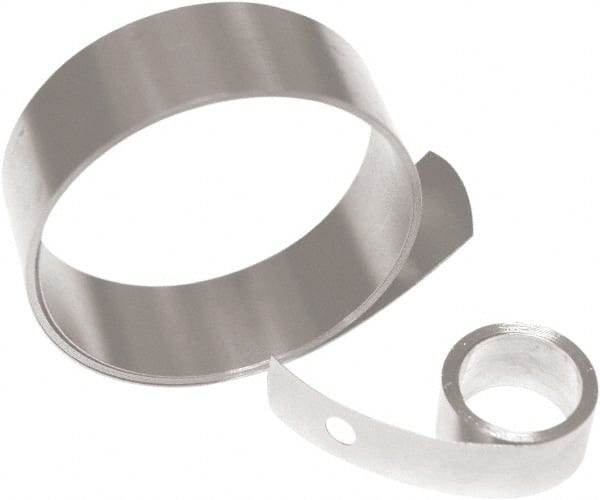

Associated Spring Raymond - 0.012" Thick x 38" Long, 22.24 N Capacity Constant Force Spring - 0.81" Wide, 1.02" ID of Reflection, 1.84" Initial Extension, 0.187" End Hole Diam
Item #: 69082436
Brand: Associated Spring Raymond
Model #: CF0380500
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Width (mm) | 20.57 |
| Thickness (mm) | 0.30 |
| Length (mm) | 965.20 |
| Inside Diameter of Reflection (mm) | 25.91 |
| Load Capacity (N) | 22.23999977 |
| Initial Extension (mm) | 46.74 |
| Inside Diameter of Reflection (Decimal Inch) | 1.0200 |
| Initial Extension (Decimal Inch) | 1.8400 |
| End Hole Diameter (Decimal Inch) | 0.1870 |
| End Hole Diameter (mm) | 4-3/4 |
| Length (Decimal Inch) | 38 |
| Thickness (Decimal Inch) | 0.0120 |
| Width (Decimal Inch) | 0.8100 |
