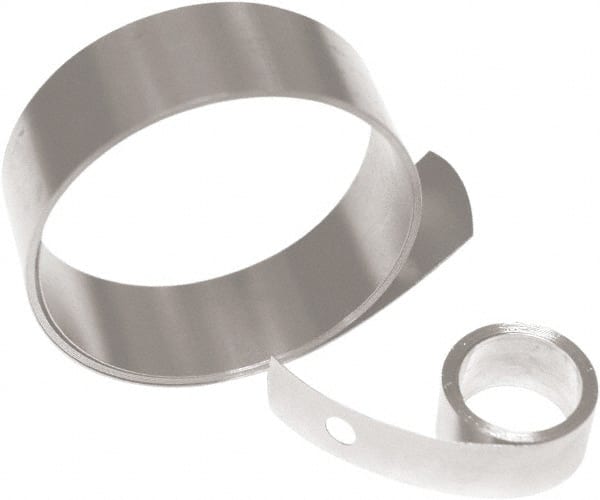

Associated Spring Raymond - 0.015" Thick x 48" Long, 15.56 N Capacity Constant Force Spring - 1" Wide, 1.96" ID of Reflection, 2.2" Initial Extension, 0.2" End Hole Diam
Item #: 69082501
Brand: Associated Spring Raymond
Model #: CF0480350
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Width (mm) | 25.40 |
| Thickness (mm) | 0.38 |
| Length (mm) | 1219.20 |
| Inside Diameter of Reflection (mm) | 49.78 |
| Load Capacity (N) | 15.56000042 |
| Initial Extension (mm) | 55.88 |
| Inside Diameter of Reflection (Decimal Inch) | 1.9600 |
| Initial Extension (Decimal Inch) | 2.2000 |
| End Hole Diameter (Decimal Inch) | 0.2000 |
| End Hole Diameter (mm) | 5.08 |
| Length (Decimal Inch) | 48 |
| Thickness (Decimal Inch) | 0.0150 |
| Width (Decimal Inch) | 1 |
