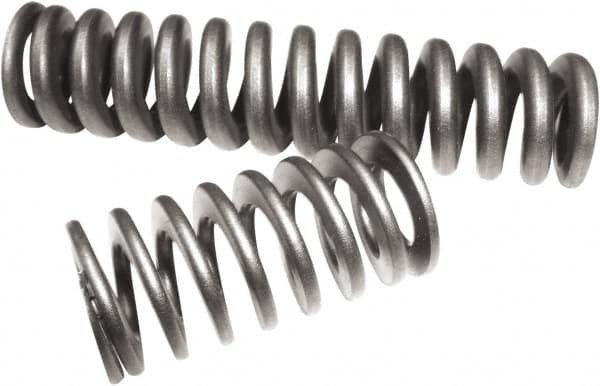

Associated Spring Raymond - 19.05mm OD 304.8mm Free Length Compression Spring
Item #: 69085009
Brand: Associated Spring Raymond
Model #: CV075012000135
Product Specifications
| Type | Compression |
| Outside Diameter (Inch) | 3/4 |
| Outside Diameter (mm) | 19.05 |
| Outside Diameter (Decimal Inch) | 3/4 |
| Free Length | 12 |
| Free Length (mm) | 304.80 |
| Free Length (Decimal Inch) | 12 |
| Spring Rate Pounds per Inch | 95.0000 |
| Maximum Work Load (N) | 760.61000000 |
| Solid Height (mm) | 228.60 |
| Solid Height (Decimal Inch) | 9 |
| Material | Chrome Alloy Steel |
| Wire Size (mm) | 3.43 |
| Wire Size (Decimal Inch) | 0.1350 |
