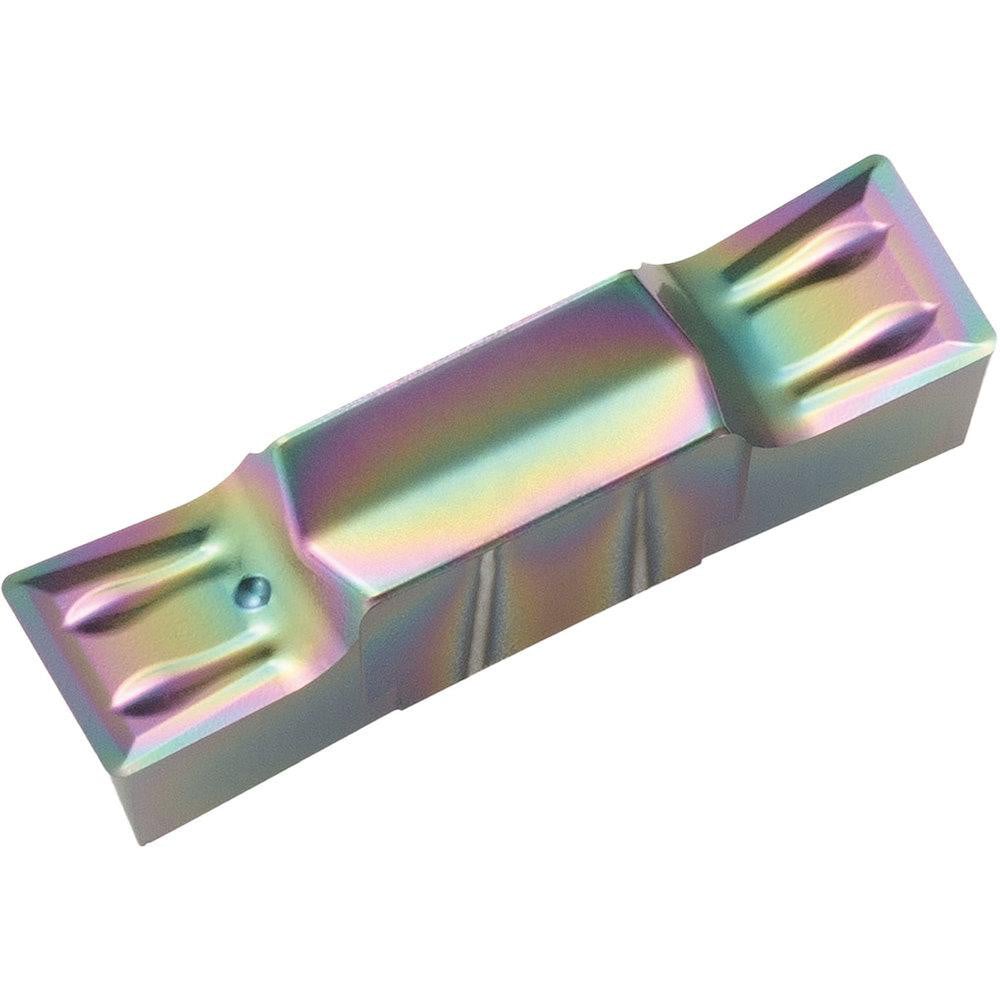

Grooving Insert: GDG 5020 AM, PDL015, Carbide
Item #: 78041159
Brand: Kyocera
Model #: TNA00004
Product Specifications
| Insert Style | GDG |
| Insert Size Code | 5020 |
| Cutting Width (mm) | 5.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 25.00 |
| Insert Material | Carbide |
| Manufacturer Grade | PDL015 |
| Full Radius | No |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 2 |
| Rake | Positive |
| Measurement Type | Metric |
| Face Grooving | No |
| Insert Holding Method | Clamp |
| Insert Size | 5020 |
| Lead Angle | 0 |
| Multi-use Tool | No |
| Coating Process | DLC |
| Primary Workpiece Material | Non-Ferrous |
| Primary Workpiece Material Code | N |
| Ansi Code | GDG5020N040AMPDL015 |
| Iso Code | GDG5020N-040AM |
| Manufacturers Catalog Number | temp-TNA00003 |
| UNSPSC Code | 23242107 |
| Cut Condition | Interrupted |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Chip Breaker | AM |
| Coating/Finish | C |
| Country of Origin | Japan |
