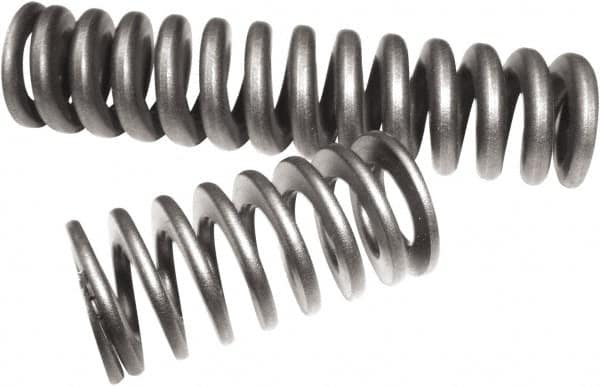

Associated Spring Raymond - 19.05mm OD, 2.362mm Wire, 101.6mm Free Length, Compression Spring - 110 Lb Spring Rating, 489.28 N Max Work Load, Chrome Alloy Steel
Item #: 69086338
Brand: Associated Spring Raymond
Model #: CV07504000093
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Compression |
| Outside Diameter (mm) | 19.05 |
| Outside Diameter (Decimal Inch) | 3/4 |
| Free Length (mm) | 101.60 |
| Free Length (Decimal Inch) | 4 |
| Spring Rate Pounds per Inch (Pounds) | 110.0000 |
| Maximum Work Load (N) | 489.27999878 |
| Solid Height (mm) | 64.01 |
| Solid Height (Decimal Inch) | 2.5200 |
| Material | Chrome Alloy Steel |
| Wire Size (mm) | 2.36 |
| Wire Size (Decimal Inch) | 0.0930 |
