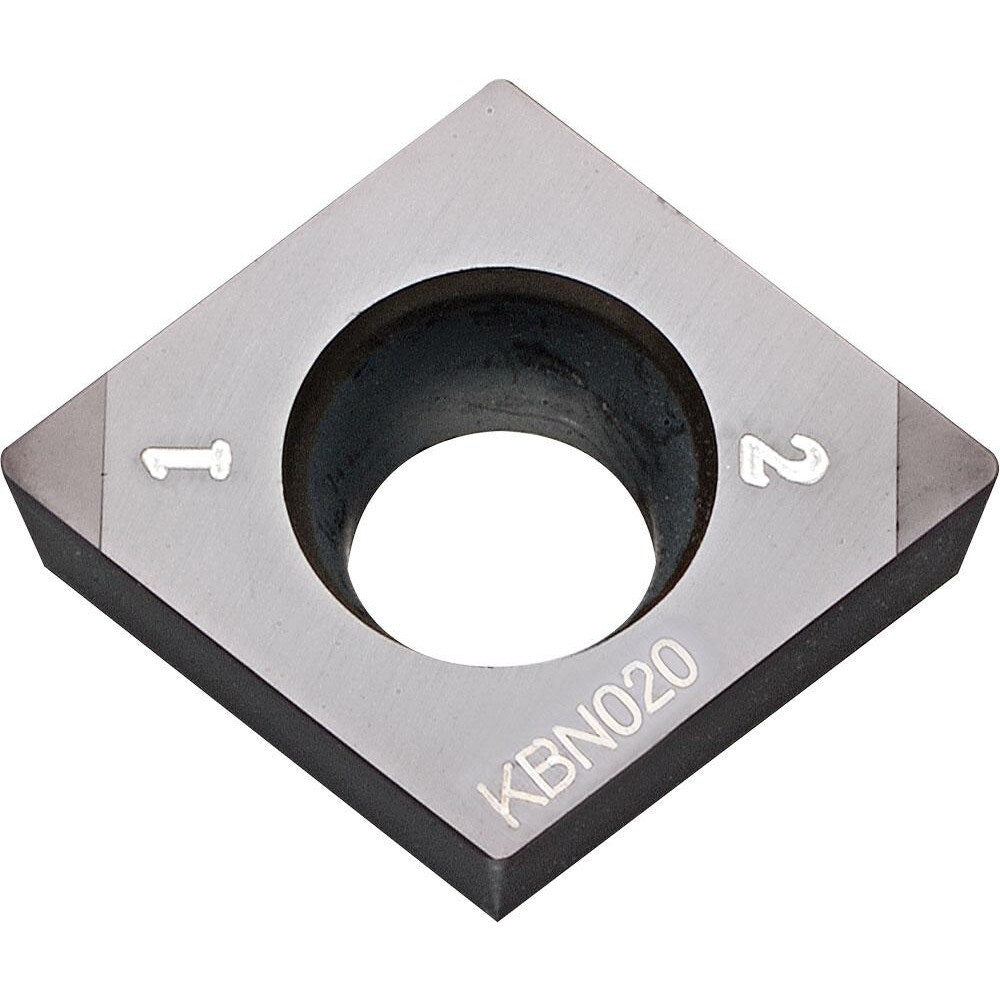

Turning Insert: CCMW3252T00315MEKBN020, CBN
Item #: 71782270
Brand: Kyocera
Model #: TFC00006
Product Specifications
| ANSI Insert Code | CCMW3252 |
| ISO Insert Code | CCMW09T308 |
| Relief Angle | 7 |
| Insert Style | CCMW |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | KBN020 |
| Coating/Finish | MEGACOAT |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | CBN |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | No Chip Breaker |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material Code | None |
| Iso Code | CCMW09T308T00815ME |
| Manufacturers Catalog Number | CCMW3252T00315MEKBN020 |
| Chip Breaker | No Chip Breaker |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
| Tip Length (Decimal Inch) | 0.0709 |
| Tip Length (mm) | 1.80 |
| ANSI Size Code | 3252 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 3252 |
| ANSI Insert Code | CCMW3252 |
| ISO Insert Code | CCMW09T308 |
| Relief Angle | 7 |
| Insert Style | CCMW |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | KBN020 |
| Coating/Finish | MEGACOAT |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | CBN |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | No Chip Breaker |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material Code | None |
| Iso Code | CCMW09T308T00815ME |
| Manufacturers Catalog Number | CCMW3252T00315MEKBN020 |
| Chip Breaker | No Chip Breaker |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
| Tip Length (Decimal Inch) | 0.0709 |
| Tip Length (mm) | 1.80 |
| ANSI Size Code | 3252 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 3252 |
| MSC Part # | 71782270 |
| Mfr Part # | TFC00006 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
