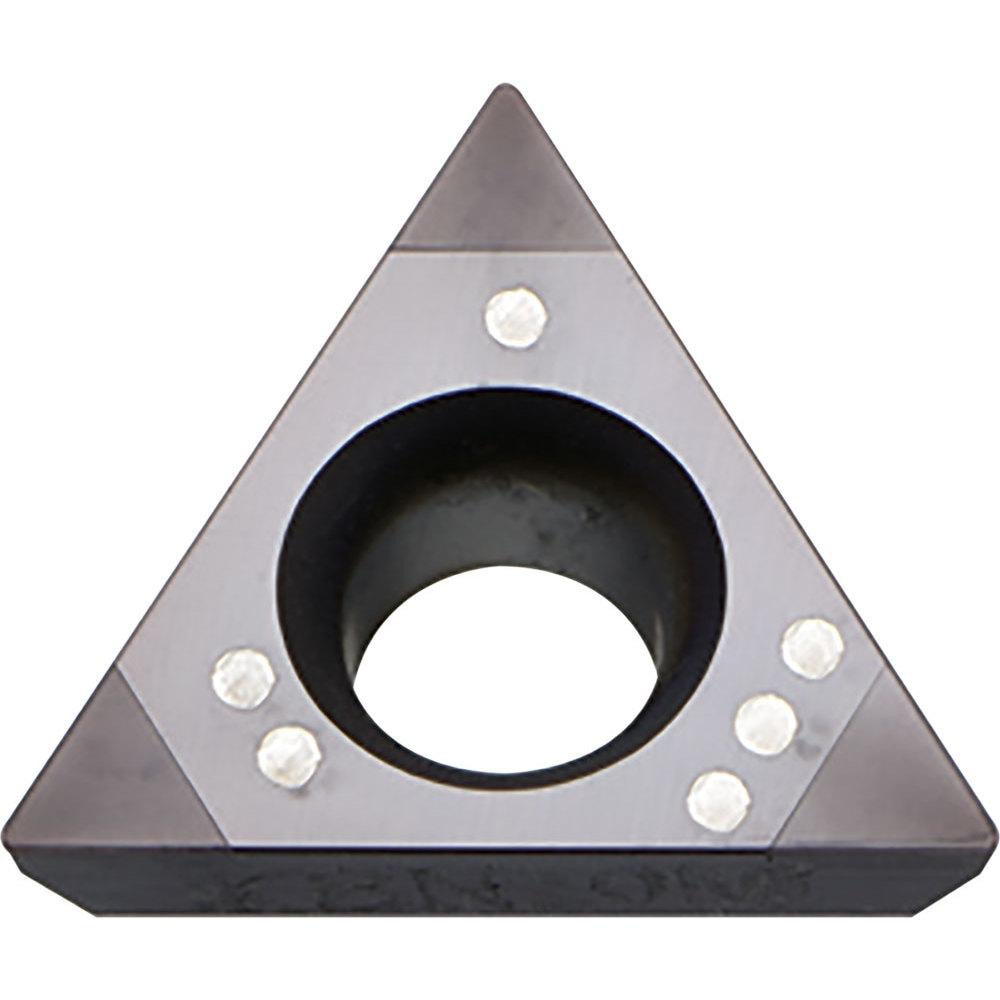

Turning Insert: TPGB322S00435MET, Cubic Boron Nitride (CBN)
Item #: 68907492
Brand: Kyocera
Model #: TFD00108
Product Specifications
| ANSI Insert Code | TPGB |
| ISO Insert Code | TPGB |
| Relief Angle | 11.000 |
| Insert Style | TPGB |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60.00 |
| Manufacturer Grade | KBN010 |
| Coating/Finish | MEGACOAT TOUGH |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Triangle |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.5000 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | P |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Iso Code | TPGB160308S01035MET |
| Standards | KBN010 |
| Manufacturers Catalog Number | TPGB322S00435METKBN010 |
| Chip Breaker | None |
| Cutting Edge Style | Tough; Honed |
| Industry Standard Number | TPGB160308S01035MET |
| Multi-Use Tool | Yes |
| Tip Length (Decimal Inch) | 0.0591 |
| Tip Length (mm) | 1.50 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 322 |
| ANSI Insert Code | TPGB |
| ISO Insert Code | TPGB |
| Relief Angle | 11.000 |
| Insert Style | TPGB |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60.00 |
| Manufacturer Grade | KBN010 |
| Coating/Finish | MEGACOAT TOUGH |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Triangle |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.5000 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | P |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Iso Code | TPGB160308S01035MET |
| Standards | KBN010 |
| Manufacturers Catalog Number | TPGB322S00435METKBN010 |
| Chip Breaker | None |
| Cutting Edge Style | Tough; Honed |
| Industry Standard Number | TPGB160308S01035MET |
| Multi-Use Tool | Yes |
| Tip Length (Decimal Inch) | 0.0591 |
| Tip Length (mm) | 1.50 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 322 |
| MSC Part # | 68907492 |
| Mfr Part # | TFD00108 |
| Country of Origin Country of Origin is subject to change | Ireland |
