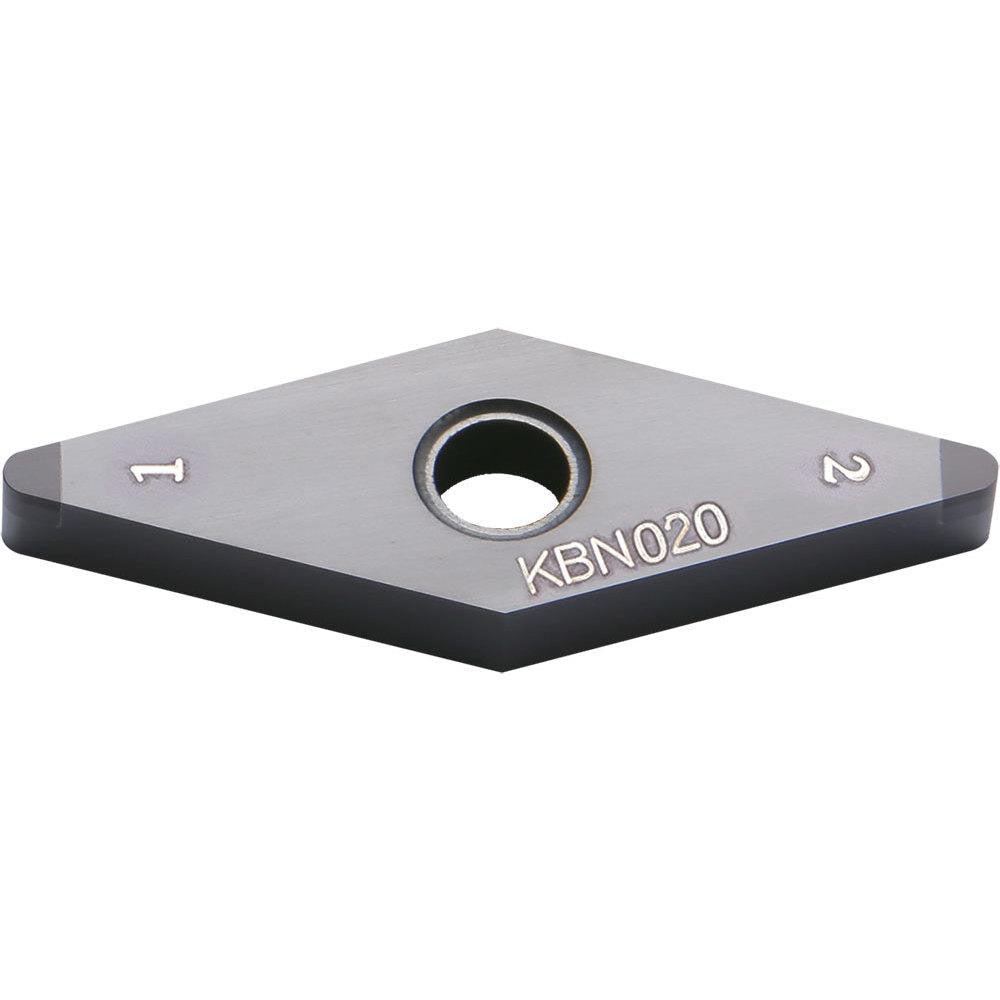

Turning Insert: VNGA3305S00525ME, Cubic Boron Nitride (CBN)
Item #: 68903707
Brand: Kyocera
Model #: TFD00050
Product Specifications
| ANSI Insert Code | VNGA |
| ISO Insert Code | VNGA |
| Relief Angle | 0.000 |
| Insert Style | VNGA |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35.00 |
| Manufacturer Grade | KBN010 |
| Coating/Finish | MEGACOAT TOUGH |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Diamond |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.8100 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Negative |
| Iso Code | VNGA160402S01225ME |
| Standards | KBN010 |
| Manufacturers Catalog Number | VNGA3305S00525MEKBN010 |
| Chip Breaker | None |
| Cutting Edge Style | Honed |
| Industry Standard Number | VNGA160402S01225ME |
| Multi-Use Tool | Yes |
| Tip Length (Decimal Inch) | 0.0906 |
| Tip Length (mm) | 2.30 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 3305 |
| ANSI Insert Code | VNGA |
| ISO Insert Code | VNGA |
| Relief Angle | 0.000 |
| Insert Style | VNGA |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35.00 |
| Manufacturer Grade | KBN010 |
| Coating/Finish | MEGACOAT TOUGH |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Diamond |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.8100 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Negative |
| Iso Code | VNGA160402S01225ME |
| Standards | KBN010 |
| Manufacturers Catalog Number | VNGA3305S00525MEKBN010 |
| Chip Breaker | None |
| Cutting Edge Style | Honed |
| Industry Standard Number | VNGA160402S01225ME |
| Multi-Use Tool | Yes |
| Tip Length (Decimal Inch) | 0.0906 |
| Tip Length (mm) | 2.30 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 3305 |
| MSC Part # | 68903707 |
| Mfr Part # | TFD00050 |
| Country of Origin Country of Origin is subject to change | Ireland |
