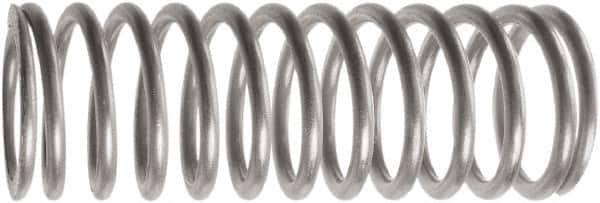

Associated Spring Raymond - 55mm OD, 5mm Wire, 410mm Free Length, Compression Spring - 15.7 Lb Spring Rating, 784.53 N Max Work Load, Music Wire
Item #: 69090801
Brand: Associated Spring Raymond
Model #: D13970
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Compression |
| Outside Diameter (mm) | 54.99 |
| Outside Diameter (Decimal Inch) | 2.1650 |
| Free Length (mm) | 410.01 |
| Free Length (Decimal Inch) | 16.1420 |
| Spring Rate Pounds per Inch (Pounds) | 15.7000 |
| Maximum Work Load (N) | 784.53002930 |
| Solid Height (mm) | 102.49 |
| Solid Height (Decimal Inch) | 4.0350 |
| Material | Music Wire |
| Wire Size (mm) | 5 |
| Wire Size (Decimal Inch) | 0.1970 |
