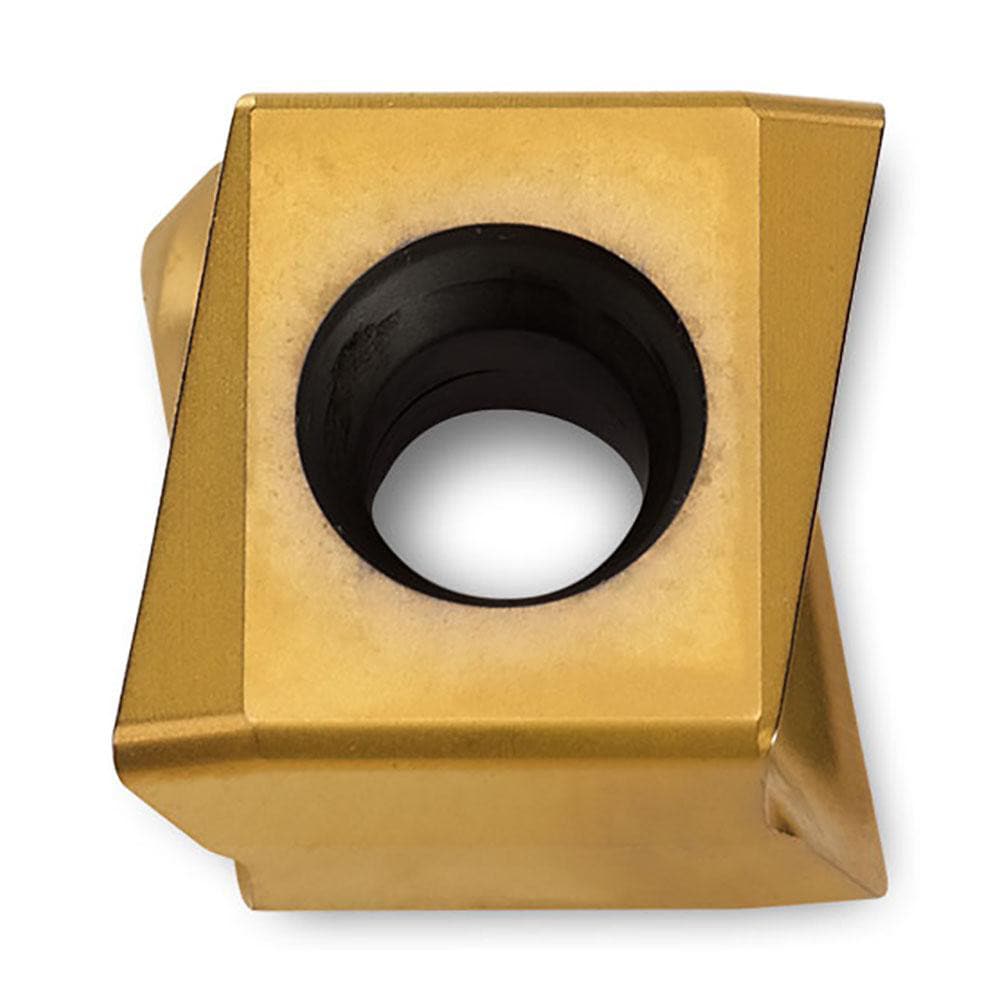

Milling Insert: DGM314R001 IN4015 IN4015, Solid Carbide
Item #: 68990282
Brand: Ingersoll Cutting Tools
Model #: 2900687
Product Specifications
| Insert Style | DGM |
| Insert Size | 31 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN4015 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2800 |
| Coating/Finish | AlCrO; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 314 |
| Material Grade | Fine Grain; Medium Grain |
| Length (Inch) | 29/64 |
| Inscribed Circle (Decimal Inch) | 0.2800 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2000 to 0.3000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | DGM |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron |
| Primary Workpiece Material Code | H; K |
| Ansi Code | DGM314R001 A IN4015 |
| Iso Code | DGM314R001 IN4015 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 2900687 |
| Cutter Series Compatibility | SJ6F; 1SJ1F; 1BW7; 1BW7X; 2SJ3F |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3950 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4530 |
| Insert Style | DGM |
| Insert Size | 31 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN4015 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2800 |
| Coating/Finish | AlCrO; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 314 |
| Material Grade | Fine Grain; Medium Grain |
| Length (Inch) | 29/64 |
| Inscribed Circle (Decimal Inch) | 0.2800 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2000 to 0.3000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | DGM |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron |
| Primary Workpiece Material Code | H; K |
| Ansi Code | DGM314R001 A IN4015 |
| Iso Code | DGM314R001 IN4015 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 2900687 |
| Cutter Series Compatibility | SJ6F; 1SJ1F; 1BW7; 1BW7X; 2SJ3F |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3950 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4530 |
| MSC Part # | 68990282 |
| Mfr Part # | 2900687 |
