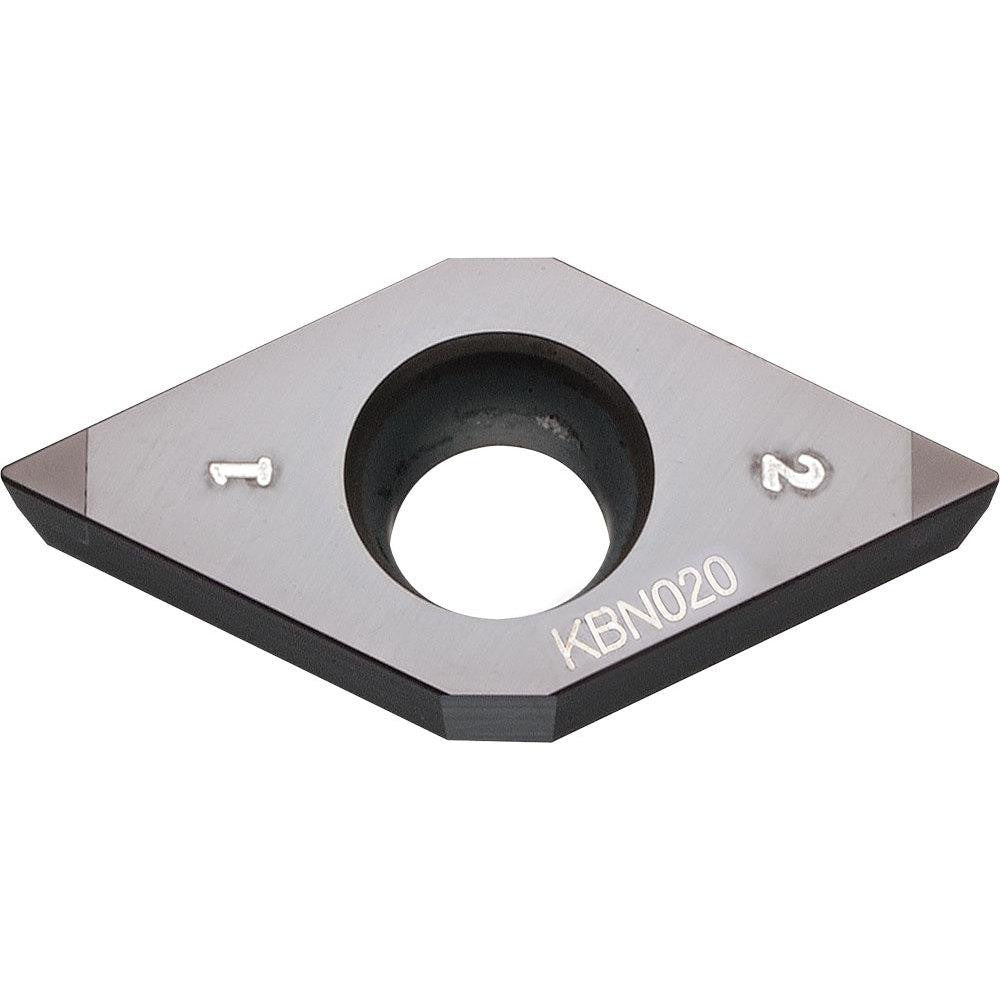

Turning Insert: DCMW2151S00435MET, Cubic Boron Nitride (CBN)
Item #: 68899616
Brand: Kyocera
Model #: TFD00086
Product Specifications
| ANSI Insert Code | DCMW |
| ISO Insert Code | DCMW |
| Relief Angle | 7.000 |
| Insert Style | DCMW |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Included Angle | 55.00 |
| Manufacturer Grade | KBN010 |
| Coating/Finish | MEGACOAT TOUGH |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Diamond |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Iso Code | DCMW070204S01035MET |
| Standards | KBN010 |
| Manufacturers Catalog Number | DCMW2151S00435METKBN010 |
| Chip Breaker | None |
| Cutting Edge Style | Tough; Honed |
| Industry Standard Number | DCMW070204S01035MET |
| Multi-Use Tool | Yes |
| Tip Length (Decimal Inch) | 0.0669 |
| Tip Length (mm) | 1.70 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 2151 |
| ANSI Insert Code | DCMW |
| ISO Insert Code | DCMW |
| Relief Angle | 7.000 |
| Insert Style | DCMW |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Included Angle | 55.00 |
| Manufacturer Grade | KBN010 |
| Coating/Finish | MEGACOAT TOUGH |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Diamond |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Iso Code | DCMW070204S01035MET |
| Standards | KBN010 |
| Manufacturers Catalog Number | DCMW2151S00435METKBN010 |
| Chip Breaker | None |
| Cutting Edge Style | Tough; Honed |
| Industry Standard Number | DCMW070204S01035MET |
| Multi-Use Tool | Yes |
| Tip Length (Decimal Inch) | 0.0669 |
| Tip Length (mm) | 1.70 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 2151 |
| MSC Part # | 68899616 |
| Mfr Part # | TFD00086 |
| Country of Origin Country of Origin is subject to change | Ireland |
