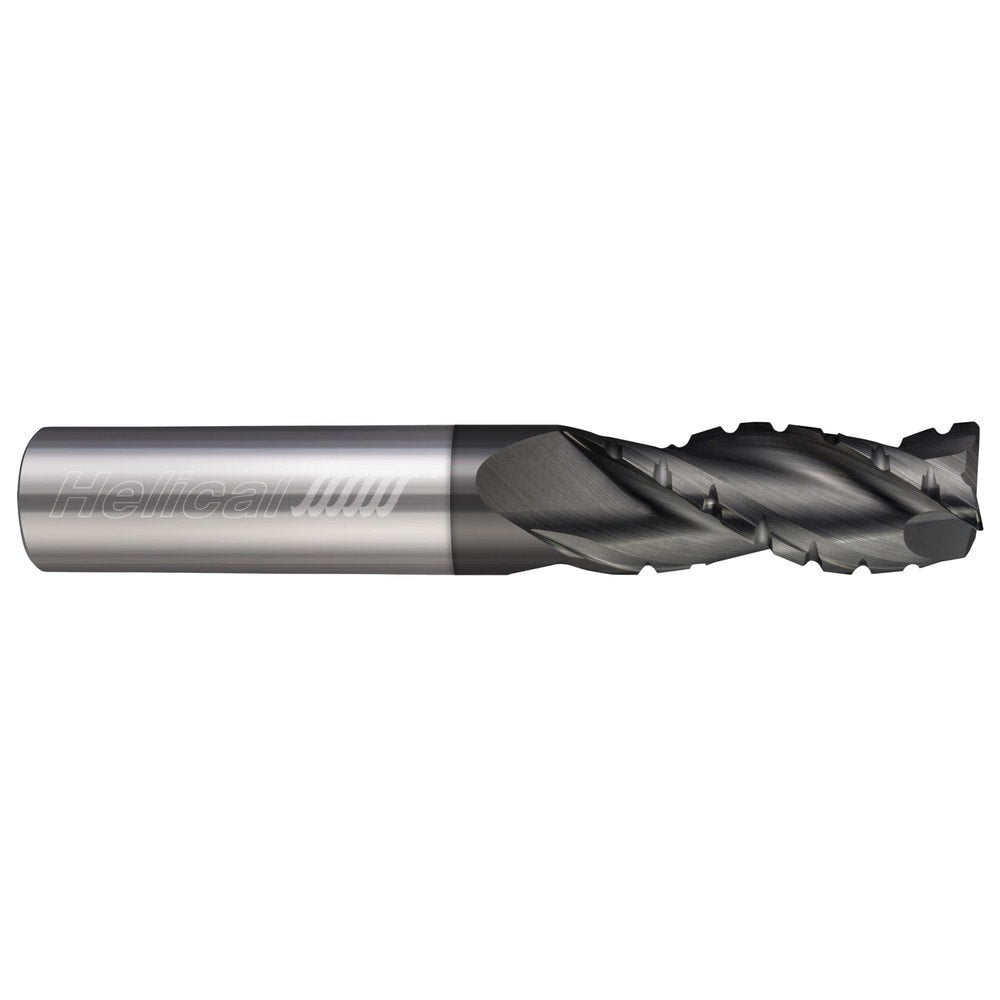

Corner Radius End Mill: 1/2" Dia, 1-5/8" LOC, 0.0300" Radius, 3 Flute, Solid Carbide
Item #: 84027473
Brand: Helical Solutions
Model #: 87801
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (mm) | 12.70 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 1-5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| Coating/Finish | Dplus |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 4.00 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (mm) | 12.70 |
| UNSPSC Code | 27112803 |
| Series | Aluminum - 3 Flute - Corner Radius - 35° Helix - Variable Pitch - Chipbreaker |
| Country of Origin | UNITED STATES |
