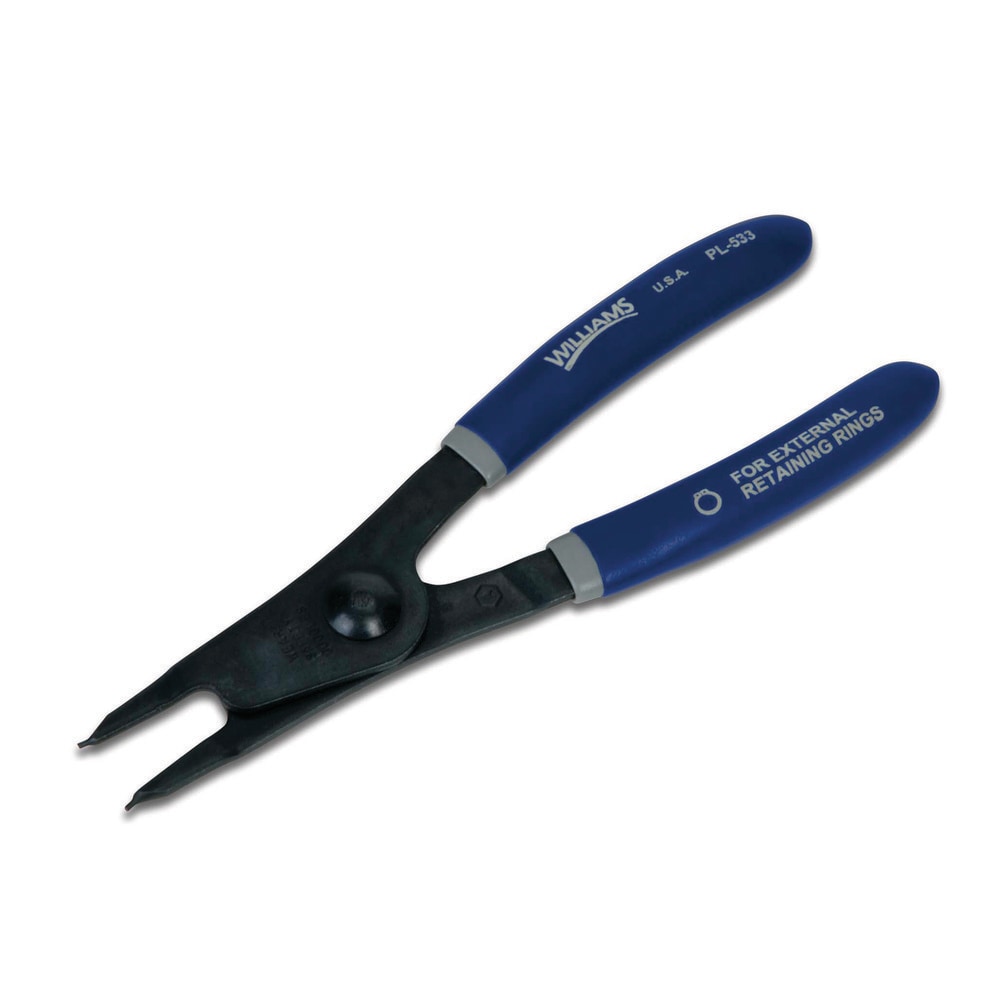

Retaining Ring Pliers; Type: Retaining Ring Plier; Tip Angle: 180; Ring Diameter Range (Inch): 0.39 to 0.98 (External); Overall Length (Decimal Inch): 6.5; Overall Length (Inch): 6-1/2; Overall Length (mm): 165.1
Item #: 75606582
Brand: Williams
Model #: PL-533
Product Specifications
| Type | Retaining Ring Plier |
| Tip Angle | 180 |
| Ring Diameter Range (Inch) | 0.39 to 0.98 (External) |
| Overall Length (Decimal Inch) | 6.5 |
| Overall Length (Inch) | 6-1/2 |
| Overall Length (mm) | 165.1 |
| Tip Type | Fixed |
| Handle Type | Dipped |
| Body Material | Steel |
| Insulated | No |
| Esd Safe | No |
| Tether Style | Not Tether Capable |
| Features | Internal - used for installing and removing internal retaining rings in a bore without damage to the ring; External - used for installing and removing external retaining rings on a shaft without damage to the ring; Designed for accurate fit and long wear by precision forming and induction hardening; Finished with black oxide coating.; Manufactured from high carbon, heat treated steel |
| Non-sparking | No |
| Auto Open | No |
| Standards | Plier |
| Maximum Ring Size (Inch) | 1-1/32 |
| Maximum Ring Size (Decimal Inch) | 0.09 |
| Spring | No |
| Head Style | Plier |
| UNSPSC Code | 27112110 |
| Country of Origin | UNITED STATES |
