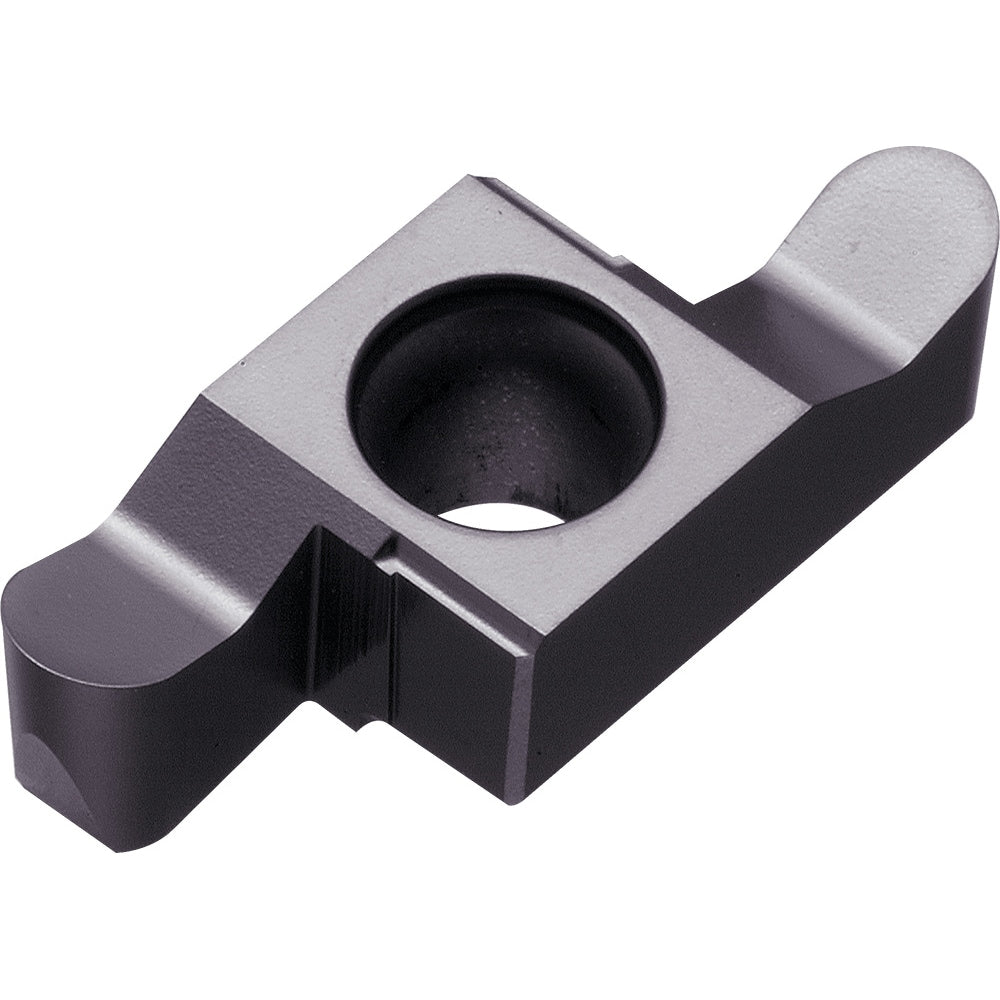

Grooving Insert: GE 200100 , PR2025, Carbide
Item #: 77248649
Brand: Kyocera
Model #: TLY00288
Product Specifications
| Insert Style | GE |
| Insert Size Code | 200100 |
| Cutting Width (mm) | 2.00 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 2.50 |
| Insert Material | Carbide |
| Manufacturer Grade | PR2025 |
| Full Radius | Yes |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 2 |
| Rake | Positive |
| Measurement Type | Metric |
| Face Grooving | No |
| Insert Holding Method | Screw |
| Insert Size | 200100 |
| Lead Angle | 0 |
| Multi-use Tool | No |
| Coating Process | PVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | M |
| Ansi Code | GER200100CRPR2025 |
| Iso Code | GER200-100CR |
| Manufacturers Catalog Number | temp-TLY00266 |
| UNSPSC Code | 23242107 |
| Cut Condition | Interrupted |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 2.00 |
| Chip Breaker | None |
| Gage Diameter (Decimal Inch) | 0.1102 |
| Coating/Finish | MEGACOAT NANO EX |
| For Use With | SIGER1612C-WH; SIGER1616C-EH; SIGER0809C-EH; SIGER1412C-WH-90; SIGER0810C-EH; SIGER1412C-EH; SIGER1612C-EH; SIGER1412C-WH |
| Country of Origin | Japan |
