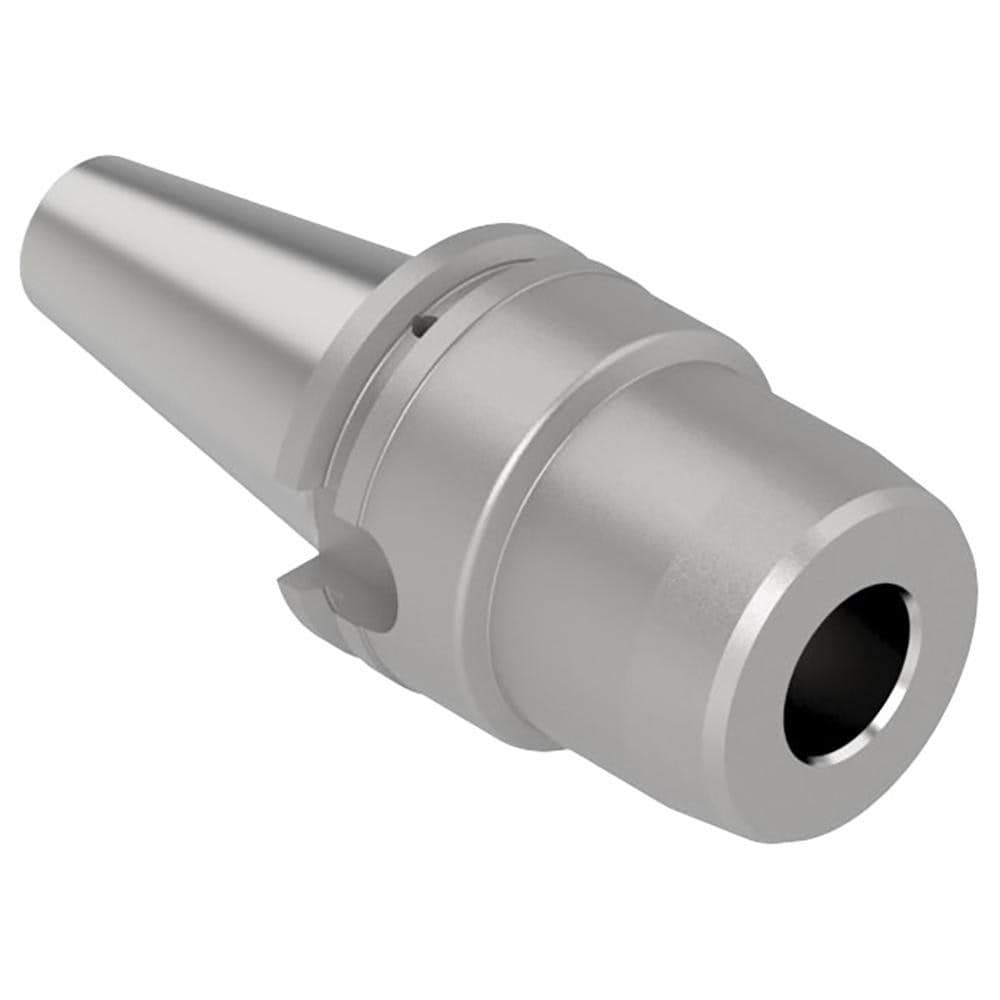

Hydraulic Tool Chuck: CAT40 Taper Shank, 25.00 mm Hole
Item #: 74008541
Brand: Allied Machine and Engineering
Model #: HYD-CV40M25
Product Specifications
| Shank Type | Taper |
| Taper Size | CAT40 |
| Hole Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Shank Diameter (mm) | 44.4500 |
| Shank Diameter (Inch) | 1-3/4 |
| Nose Diameter | 1-29/32 |
| Nose Diameter (Mm) ( - 2 Decimals) | 48.68 |
| Projection (mm) | 81.000 |
| Projection | 3-3/16 |
| Clamping Depth (mm) | 56.50 |
| Clamping Depth (Decimal Inch) | 2.2244 |
| Balanced To Rpm | 25000 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 5.8760 |
| Overall Length (mm) | 149.2500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 25.00 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.9165 |
| Projection (Decimal Inch) | 3.1890 |
| UNSPSC Code | 27112800 |
| Shank Type | Taper |
| Taper Size | CAT40 |
| Hole Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Shank Diameter (mm) | 44.4500 |
| Shank Diameter (Inch) | 1-3/4 |
| Nose Diameter | 1-29/32 |
| Nose Diameter (Mm) ( - 2 Decimals) | 48.68 |
| Projection (mm) | 81.000 |
| Projection | 3-3/16 |
| Clamping Depth (mm) | 56.50 |
| Clamping Depth (Decimal Inch) | 2.2244 |
| Balanced To Rpm | 25000 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 5.8760 |
| Overall Length (mm) | 149.2500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 25.00 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.9165 |
| Projection (Decimal Inch) | 3.1890 |
| UNSPSC Code | 27112800 |
| MSC Part # | 74008541 |
| Mfr Part # | HYD-CV40M25 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
