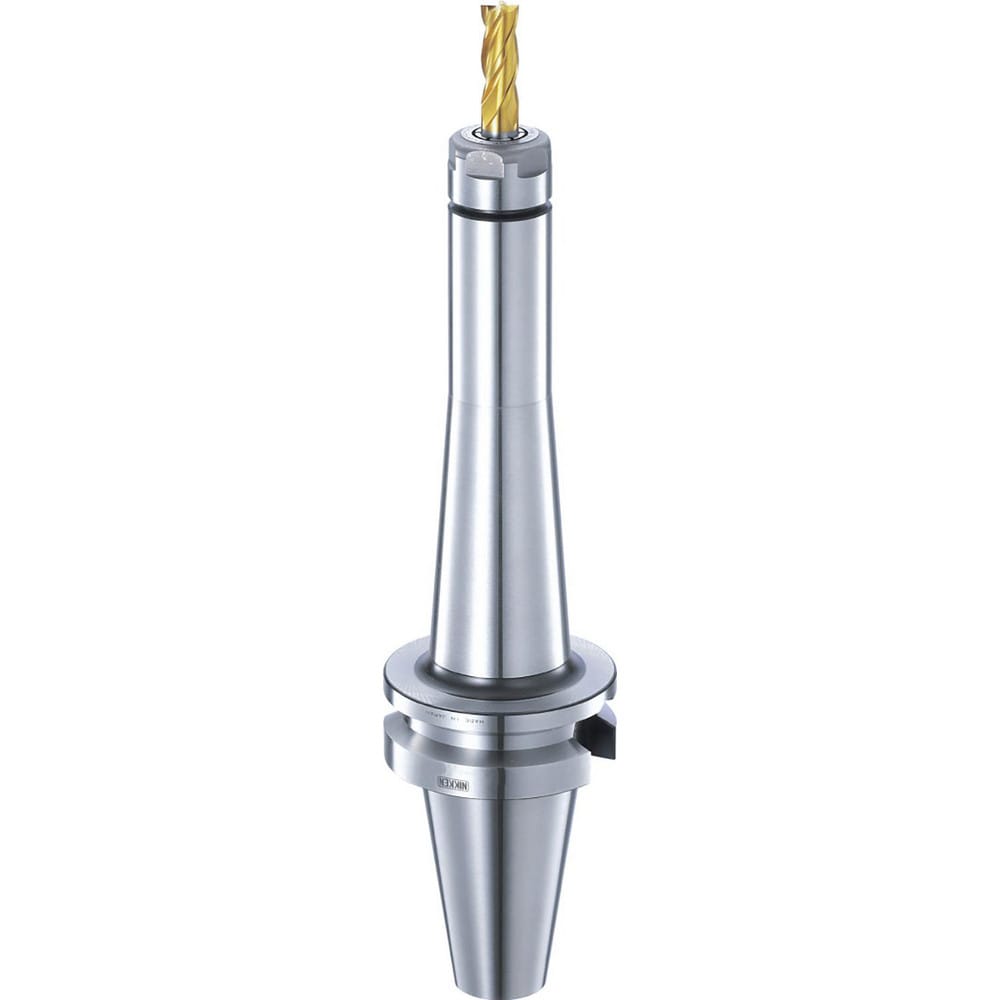

Collet Chuck: 0.0350 to 0.3940" Capacity, Slim Chuck Collet
Item #: 88415377
Brand: Lyndex-Nikken
Model #: NCAT50-SK10C-195U-IDU
Product Specifications
| Collet System | Slim Chuck |
| Collet Series | SK10 |
| Taper Size | NCAT50 |
| Projection (Decimal Inch) | 7.6800 in |
| Minimum Collet Capacity (Decimal Inch) | 0.0350 |
| Maximum Collet Capacity (Decimal Inch) | 0.3940 |
| Overall Length (Decimal Inch) | 7.68 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.0800 |
| UNSPSC Code | 27112808 |
| Thread Size (Inch) | 1-8 |
| Country of Origin | Japan |
