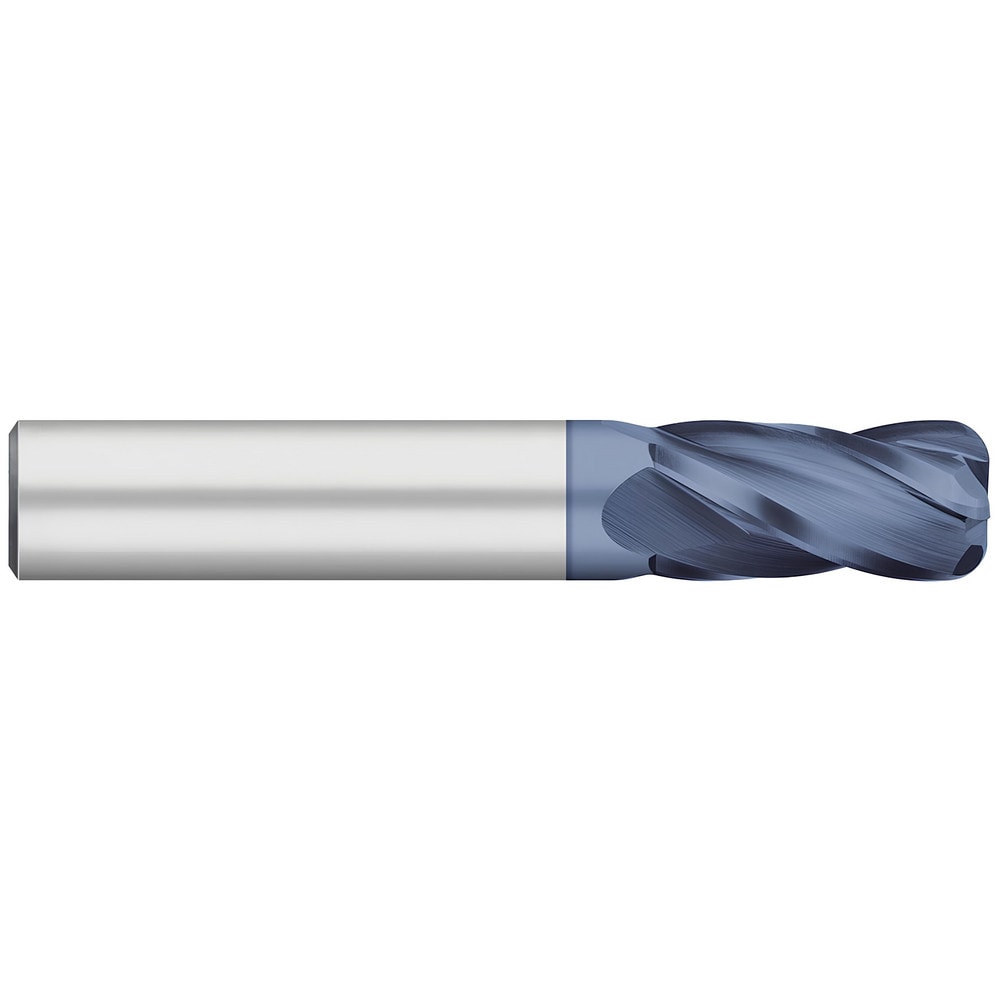

Corner Radius End Mill: 5/16" Dia, 1/2" LOC, 0.50 mm Radius, 4 Flute, Solid Carbide
Item #: 86948981
Brand: Titan USA
Model #: TC73828
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1/2 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 2 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0200 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.50 |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 2.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Shank Diameter (Inch) | 5/16 |
| Reach Length (Decimal Inch) | 0.5000 |
| Reach Length (Inch) | 1/2 |
| Corner Radius Tolerance | -0.0010 to 0.0010 in |
| Mill Diameter Tolerance | -0.0020/0.0000 in |
| Shank Diameter Tolerance | h6 |
| UNSPSC Code | 27112803 |
| Series | TC |
| Coating Classification | Uncoated |
| For Use With. | Toolholders |
| Helix Style | Medium |
| Country of Origin | UNITED STATES |
